Product Description:

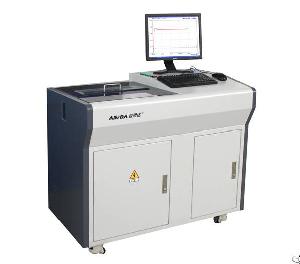

Dynamic/Static Ionic Contamination Tester LZ22
Lab Testing Machine
Usage
The instruments are suitable
for the ion contamination levels testing of bare PCB board as well as PCBA before and after cleaning and coating processes.
Features
(1)Precise
Adopting online high-precision conductivity meter, fully enclosed circulatory system, mixed anion and cation exchange resins, as well as real-time processing algorithms and temperature compensation technology.
(2)Efficient
Adopting heat extraction and high-speed loop flushing technology
(3)Characteristic
Unique dynamic / static test mode.
(4)Customize
Volume can be customized according to the requirements.
Parameters
Item LZ22
Test Method Static/Dynamic testing
Volume of Water Tank 352mm×70mm×600mm(L×W×H) about 15L
Machine Size 1050mm×600mm×920mm(L×W×H)
Test size 10 CM × 20 CM ~35 CM × 60 CM
Power 1300W
Machine Weight 115Kg
Test Accuracy ±5%
Resolution of Conductivity 0.001us/cm2
Measuring Circuit Board Area 1000-4200cm2
Proportion of Extract 0.85~0.855
Reference 66/100MΩ
Power Requirement AC220V 50HZ
Working Environment Temperature 22℃±15℃
Efficiency 5~15 minutes every time
Working Extract Temperature 40℃±2℃
Life of the filter ≤0.12 us/cm -16000pcs
IPA Loss Test 30 pcs-1L
The heating Efficiency 40℃±2℃ ~ 15-25 Min
