Product Description:

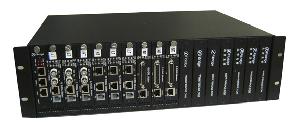

G.shdsl E1 & V.35 LAN extender is a high quality and good performance SHDSL device with standard
E1, V.35 or 10/100Mbps Ethernet interfaces integrated, you can make any choice of the three interfaces in one device. Its transmission distance is extended to 4km by 1-pair twist pair at 2M speed. FBDSL1000 is designed with 16TC-PAM code according to ITU-T G.991.2 and ITU-T G.994.1, which can improve the transmission performance and economize resource.
Features
Compatible with G.991.2 and G.SHDSL.bis protocol, 2 wires or 4 wires optional
The distance can extend to 3.7-4km with 0.4mm (AWG26) by the speed under 2Mbps for one-pair device and 4~4.5Km for two-pair device
Support ATM ALL5, NAT, PPPoA, PPPoE, RIP protocol
Support up to 5.69Mbps at 2-wire cable or 11.38Mbps at 4-wire cable when set as G.SHDSL.bis protocol
10/100Base-T interface accordant with standard IEEE802.3 and 1Mbytes buffer inserted.
MAC address list inserted and 4096 MAC address available.
E1 interface accordant with standards as ITU-TG.703G.823 and G.742.
DSL speed can be set manually or auto-detect by the DSL line
Easy to install and operate. Working preferences by DIP switch and software control.
