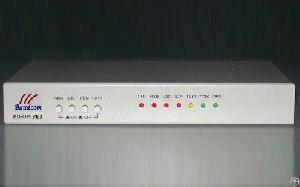

E1 Fiber Modem
Posted at: Offers to Sell and Export | Posted on: Monday 5 August 2013 9:36 am | Poster last visit: Friday 22 January 2016 |
Product Category: Main
» Information Technology Broadcasting and Telecommunications
» Data Voice or Multimedia Network Equipment or Platforms and Accessories
» Network service equipment
» Modems
» E1 Fiber Modem
Product Description:
E1 fiber modem is to modulate E1 signal to single or multi-mode fiber.The fiber modem support 75ohm or
120ohm.
Product function: Suit for transmit additional management data channel in different fibers.The fiber for transmit data can be used to monitor and control local and remote devices, and no collision will occur.
Environment requirement:
Environment
The device operate temperature range wide, can work normally and stable in different environments.
Operate temperature: 0C~50C
Relative humidity: 95% (no condensation)
No causticity and impregnant gas, no rising dust, and no strong magnetic field disturbing.
Power supply
Use module power supply as following for option, working voltage range wide, good anti-disturb and isolation, work stable.
DC-48V: voltage range -36V~-72V
AC220V: voltage range 175V~265V
power consumption <5w
E1 interface match G.703
a. Rate: 2.048Mbps.
b. Code: HDB3
c. E1 Impedance: 75ohm (unbalance) and 120ohm(balance).
Unbalance match with coaxial adapter, can match 75-2 coaxial wire. Balance match with balance adapter, can connect with twisted-pair wire.
d. Interface character: match G.703.
e. Connector: BNC(75ohm), RJ45(120ohm).
f. Jitter tolerance: fine than G.742 and G.823.
g. Clock: synchronize input E1 signal.
Fiber connector
Optical interface: SC/FC
Optical Wavelenth: FP1310 nm /DFB1550nm+/-50/40nm
Sending consumption: -9dBm/-5dBm
Receiving and dispatching module: >-6dBm
Optical receiver receiving sensitivity: <-36 (BER<10 -10):
Dynamic range receiving: >-30dB
Optical code: NRZ
Single mode : 9/125 um
Transmitting range: SM 20Km, SM 40Km, SM 60 Km, SM 120Km
dimension
210mm (W) * 140mm (L) * 30mm (h)
Order information
Bd-op-e1/ac220v
Bd-op-e1/dc-48v
Company Contact:
Contact Name: Dora
Company Name: Shanghai Baudcom Communication Device Co, .ltd
Email:
Tel: +86 21 37709251
Fax: +86 21 37709302
Street Address: Room1301, No45, Lane
1505, Mei Jia Bang Road, Song Jiang
District, Shanghai, Shanghai City,
China 201620
China
Member name: ShanghaiBaudcom
Country:
China
Member Since: 09 July 2013
Total Leads: 140 ShanghaiBaudcom Import Export Business Leads
Business focus: Telecommunications, Communication Devices, E1 Converter, Fiber Midea Converter
