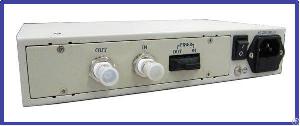

E3 Fiber Modem
Posted at: Offers to Sell and Export | Posted on: Monday 5 August 2013 9:44 am | Poster last visit: Friday 22 January 2016 |
Product Category: Main
» Information Technology Broadcasting and Telecommunications
» Data Voice or Multimedia Network Equipment or Platforms and Accessories
» Network service equipment
» Modems
» E3 Fiber Modem
Product Description:
The E3 fiber modem is an interface converter for E3 electrical and optical interface conversion. It is
designed for the PDH equipment coaxial interface and optical interface interconnect.
Product Brief
BD-OP-E3 is an interface converter for E3 electrical and optical interface conversion. It is designed for the PDH equipment coaxial interface and optical interface interconnect.
Complete loop-back facility supported for system diagnostic and commissioning. Compact casing and simple operation achieve the cost saving and investment protected.
Features
?? High reliability, comply to ITU-T G.703
?? Single Fiber Bi-Directional is selectable
?? State-of-the-art design, ensure normal working under different environment.
?? Supports local and remote loop-back on electrical or optical interface for system diagnostic.
?? Suitable for PDH E3 interface interconnection.
?? Simple operation and maintenance
?? Compact design and low power consumption.
Technical Specification
Item Description
Electrical Interface Standard ITU-T G.703 Compliant
Data Rate 34.368 Mbps
Line Code HDB3
Physical Connector BNC Coaxial
Optical Interface Bit rate 34.368 Mbps
Coding NRZ
Connector SC
Light source Laser Diode
Wave length 1310nm (Typical), or 1550 nm (Optional) or Single Fiber Bi-Directional (Optional)
Transmit power -12 dBm (1310nm) / -5 dBm (1550nm)
Receive sensitive -36 dBm (1310nm) / -38 dBm (1550nm)
Power supply AC 220V Range 165V to 265 V
DC -48V Range -32V to -72V
Power Consumption ≤ 3 W
Environment Working Temperature 0℃～50℃
Relative Humidity ≤ 90% (Non condensing)
Dimension W×H×D(mm): 205 x 135 x 46
Company Contact:
Contact Name: Dora
Company Name: Shanghai Baudcom Communication Device Co, .ltd
Email:
Tel: +86 21 37709251
Fax: +86 21 37709302
Street Address: Room1301, No45, Lane
1505, Mei Jia Bang Road, Song Jiang
District, Shanghai, Shanghai City,
China 201620
China
Member name: ShanghaiBaudcom
Country:
China
Member Since: 09 July 2013
Total Leads: 140 ShanghaiBaudcom Import Export Business Leads
Business focus: Telecommunications, Communication Devices, E1 Converter, Fiber Midea Converter
Chat:
