Product Description:
Type EHT-400U
Crimping Force 130KN
Stroke 20mm
Crimps per charge 75crimps (Cu cable 150mm2 )
Crimping
cycle 6s up to 13s (depend on the size)
Weight 5.95kgs (w/o charger)
Battery voltage 14.4V
Battery capacity 3.0Ah
Charging time 2-2.5h
Package Steel case
Weight of case 5.5Kgs
Accessories
Crimping Dies. 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
Battery 2pcs
Charger 1pcs
O-Ring for oil vat 1set
O-Ring for safety valve 1set
Features:
For interchangeable dies.
Crimping head H type, rotates 360°.
Two stage hydraulics.
Quick motor stop.
Motor stop and automatic retraction when crimp is complete.
Electronic control and monitoring of crimping operation.
Light diode for battery charge and maintenance control.
High-performance 3.0Ah NIMH battery.

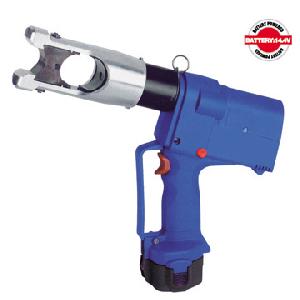

Battery Powered Hydraulic Crimping Tool EHT-400U (Battery Powered Crimping Tool 16-400mm2 )
