Product Description:

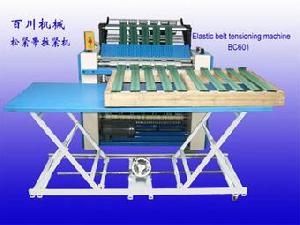

Elastic belt tensioning machine
Model BC601
Dimensions(L*W*H) 1220mm*990mm*1320mm
Net weight 150kg
Power 0.75kw
Air
pressure <0.5MPa
Addition working table size 1800*650mm
The machine is suitable for the sofa production.
To upgrade the products quality and improve working
efficiency while stapling elastic belts to wooden frames.
To strength out six belts homogeneously, keeping them in the
same tension and length.
Stapling the elastic belts on the wooden frame, the machine going back and ensuring the equal tension of six belts. And then stapling the belt on the other side of wooden frame, cutting the belts.
For the belts length, tension, distance between two belts, number of belts, it is adjustable.
An additional hand-operating lifting table facilitating working.
