Product Description:

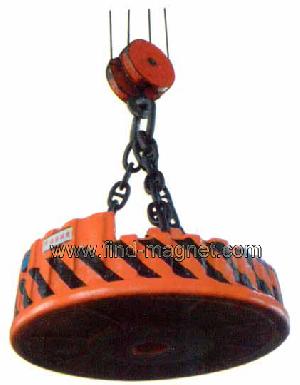

Our electric lifting magnets are suitable for transporting small sheet metal parts and iron tool parts,
as well as for handling big and cast iron and other scrap, small parts, nuts and bolts. Round or rectangular shape, welded or cast type, land use or diving are available.
Technical parameters:
1. Model: LMW1-70
2. Outer dimension: 700X840X160XX100X35mm
3. Weight: 510kg
4. Cool-State Current: 16A
5. Power Consumption: 3.5kw
6. Lifting Capability:
Steel Sphere: 2500
Casting Iron (cool/hot): 400/210
Steel Remainder (cool/hot): 400/210
Scrap (cool/hot): 130/110
7. Auxiliary Device:
Cable Sphere: DL-102
Cable Roll: JTA50-15-2 II
Cable: 10mm˛ 2 cores, 20m 1 piece
Rectifying Control Box: LA-5
Other models electric lifting magnets are available.
Packaging Details: wooden case
Delivery Time: around 30 days
Payment Terms: L/C, T/T
For more detail info, please feel free to visit our website www dot find-magnet.com or inquire us at any of your convenience.
