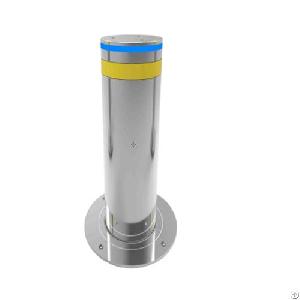

Electric Retractable Driveway Bollard Jdbrd-2
Posted at: Offers to Sell and Export | Posted on: Thursday 27 October 2022 8:59 am | Poster last visit: Thursday 24 August 2023 |
Product Category: Main
» Defense and Law Enforcement and Security and Safety Equipment and Supplies
» Security surveillance and detection
» Surveillance and detection equipment
» Security or access control systems
» Electric Retractable Driveway Bollard Jdbrd-2
Product Description:
Electric retractable driveway bollard, automatic rising security bollard, hydraulic rising bollard comes
with sleek design and pleasing aesthetics
Electric retractable driveway bollard JDBRD-2, also called automatic retractable traffic bollard or automatic electric bollard, is designed to prevente unauthorized vehicles access to secured areas and provide the highest level of antiterrorism protection, which is mostly installed at the high risk places with heavy vehicle traffic flow. The unique design brings desired environmental & aesthetic enhancements to perimeter security, securing perimeter access without the sense of social disorder and active alarm measures. Electric retractable driveway bollard JDBRD-2 can be interfaced to any access control systems. In the event of a power fail, they will automatically lower into the lowest position to release the passage. One or more such electric retractable bollard can be installed and operated together or individually.
Electric retractable driveway bollard JDBRD-2 provides a simple, low-maintenance, cost-effective and smooth operational way and widely used for military sites, airports, embassies, consulates, banks, marine zones, prisons, and industrial etc, where there is a requirement for high-security levels in terms of perimeter protection.
Electric Retractable Driveway Bollard Featurers
1.The operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising barrier.
2. The hydraulic pump is built in the pit of the bollard
3. Easy to transport, store and install because of the self-supporting structure and the limited weight
4. Crash-rated security bollard with integrated hydraulic pump for ease of installation, increased relaibilty and intensive use
5. Easy maintenance (can be performed by a single person)
6. Low power consumption
7. Equipped with anti-vandal function, which detects a forced command, to reset the bollard and activate an alarm
8. Ability to operate even in the event of a power failure
9. Suitable for a wide variety of HVM applications
10. Sleek design and pleasing aesthetics
Electric Retractable Driveway Bollard Applications
Prisons
Office buildings
Shopping centres
Stadiums
Nuclear facilities
High profile buildings
Pedestrian zones
Electric Retractable Driveway Bollard Parameters
System Control : Electric hydraulic drive
Power Supply: AC220V/ AC110V±10%, 50/60hZ (control voltage DC24V)
Material: #304 stainess steel ( #201, #304, #316 stainless steel optional)
Diameter: φ168mm, φ219mm, φ273mmoptional
Thickness: 6mm, 8mm, 10mm, 12mm, 15mm, 20mm optional
Box Round Diameter: φ370mm. Height: 990mm
Through Pressure: Bearing over 80 ton container truck
Outside Bollard Height : 600mm
Remote Control Range: ≤ 30 meters
System Power : 3.7 KW
Rising Time: ≤3~5 seconds (adjustable)
Falling Time: ≤ 3 seconds (adjustable)
Working Temperature: -35ºC~75ºC
Storage Temperature: -10ºC~65ºC, anti-rain, anti-dust, anti-moisture
What is an electric retractable driveway bollard?
Electric retractable driveway bollard, also called automatic hydraulic bollard or automatic retractabler security bollard, is vertical electric post for controlling or directing vehicles, preventing access to unauthorised vehicles by rising and collapsing automatically when integrated with sensors or traffic management systems. It is designed to withstand a high usage and physical impact, whilst still maintaining the unobtrusive aesthetic to fit in with local surroundings, it is an ideal vehicle access control solution for critical areas, such as military sites, airports, embassies, consulates, banks, marine zones, prisons, and industrial etc, where there is a requirement for high-security levels in terms of perimeter protection. Electric retractable driveway bollard consists of a flanged cylinder providing a casing to the rising bollard, an electronic control box and a motor pump unit. The housing cylinder, to be inserted into a foundation tube cemented into the ground and is firmly secured to the foundation with anchor flanges. Suitable openings in the lower and middle sections of the bollard are provided both to drain possible water residues that may gather inside and for cables access into the bollard for the electrical connections. Inside the location cylinder is the rising bollard which can be activated by a range of control devices, such as radio transmitters or keyswitch through the main control box, to the raised or fully lowered positions.
How does an electric retractable driveway bollard works?
In general, electric retractable driveway bollard is controlled remotely from a security post by means electronic, hydraulic or pneumatic motors to rise up to their full height from ground level when blocking the passage, or lower down completely to release the passage for free access to vehicles. Integrated with access control systems and managed by using remote control systems or remote switches from the security post of a facility, the automatic rising bollard is activated using proximity cards, audio intercom, radio transmitters, automatic number plate recognition (ANPR) or a simple button controller. Automatic retractable traffic bollard can be controlled by any type of access control systems, such as swipe or proximity cards, audio intercom, radio transmitters, automatic number plate recognition (ANPR) or a simple button controller. Some automatic bollards can also be fitted with induction loops and traffic signals for additional safety.
Electric retractable driveway bollard types
1. Pneumatic electric retractable driveway bollard: air is used as the driving medium to drive the rise and fall of the column through the external pneumatic power unit
2. Hydraulic electric retractable driveway bollard: hydraulic oil is used as the driving medium. There are two control modes, i.e. driving the cylinder up and down through an external hydraulic power unit (the driving part is separated from the cylinder) or a built-in hydraulic power unit (the driving part is placed in the cylinder).
3. Electromechanical electric retractable driveway bollard: the lifting of the bollards is driven by the motor built in the bollard.
The advantages of electric retractable driveway bollard
1. endure high impact and effectively guide traffic and protect against unwanted access
2. 100% duty rating – automatic bollard is designed for continuous and frequent use.
3. combines appealing aesthetics with the highest level of perimeter control
4. the operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising barrier
5. can be activated by any access control system or signalling device
6. in case of power failure, the obstacle can be lowered by a manual operation directly on the hydraulic pump
7. high number of cycles and low power consumption
8. crash-rated security bollard with integrated hydraulic pump for ease of installation, increased reliabilty
Applications of electric retractable driveway bollard
Pedestrian zones
lanes for buses and taxis
Access roads to areas (industry and commerce)
Inner courtyards with delivery traffic
Stations, stadiums, post offices, shopping centres
Embassies, airports, high profile buildings
