Product Description:

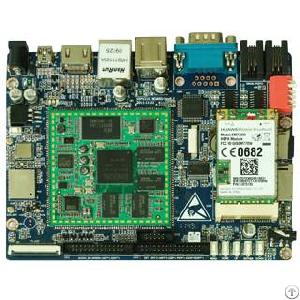

Boardcon EM210 is an embedded single board computer which is based on the Samsung S5PV210. The small
size and low power consumption of the EM210 allows its integration into hand-held POS and mobile devices.
Boardcon can provide the embedded hardware and software you need to meet your embedded project requirements
Feature
* Processor: Samsung ARM Cortex-A8 S5PV210AH, up to 1GHz
* Memory: 512MB DDR2
* Flash: 256MB~2GB NAND Flash
* Supporting 2D graphics acceleration, up to 160Mpixels/s, maximum resolution 8000*8000
* Supporting 3D graphics acceleration(Power VR SGX540)
* Monolithic integrated power management chip
* Supporting 4.3” / 7” / 10.1” resistive touchscreen; 4.3” capacitive touchscreen; 15” SAW touchscreen
* One Key to update Boot-loader, Kernel, Yaffs and one Key to configure parameters of Linux
* 3.1Mega pixels Camera
* System parameters can be saved in REGEDIT, and residual Flash can be read and written
* The system can be updated via USB interface.
* Supporting Android 4.0, Linux 2.6.32 and WinCE6.0
* Optional module: GPS, WCDMA, Camera, WIFI, RFID
* Dimensions: Carrier board-108mm x141mm; CPU board- 60mm x 60mm
