Product Description:

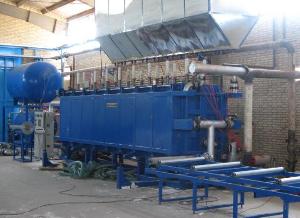

EPS block molding machine
Beijing CONET Science Technology Co., LTD
We specialize in
3D Panel Plant, EPS Line, Wire Mesh Welding Lines, Expanded Metal Mesh Machine, and Cold Rolled Ribbed Steel Wire Line. We are also able to respond to your particular needs.
Model: CN-PSB6000
Mould size: 6060X1240X630mm
Block size: 6000X1200X600mm
Block density: 10-30kg/L
Around 15 mins per cycle at density 15kg/m3 140 m3/8hours
Steam consumption: 15-18kg/m3
Supply steam pressure: 6 bars
Power: 11kw, actual power consumption :7 kwh 50Hz, 380V
Overall Weight: 9500kg
Dimension: 9100X2500X3100mm
Include:
Main frame (six plate with pipe system)
weighing exit line (with weigh scale)
Filling system (9 m3 material hopper, one air blower, filling gun and so on)
control system
spare parts box
