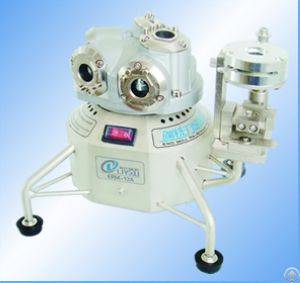

Erm20 End Mill Grinder Can Sharp 4-20mm End Mills, High Precision
Posted at: Offers to Sell and Export | Posted on: Thursday 23 October 2014 3:46 am | Poster last visit: Thursday 23 October 2014 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Metal cutting machinery and accessories
» Metal milling machines
» Machine end mill
» Erm20 End Mill Grinder Can Sharp 4-20mm End Mills, High Precision
Product Description:
ERM20 end mill grinder
1.Applicable to φ4~φ20 (2/3/4-flute) tungsten carbide and high-speed
steel end mill
2.Grind rear inclined angle, blade edge and front angle
3.For different and mill grinding, no need to change grinding wheel.
4.Easy to handle, grind one piece need no more than one minute.
5.High precision(0.01MM), normatively re-sharpening.
6.Mill cutting edge can be adjusted suitable for materials to processed
Features:
Model:ERM20
Applicable diameters:φ4~φ20
Applicable flutes :2 flute, 3 flute, 4 flute
Axial angles:Secondary clearance angle 6°, Primary relief angle 20°, End gash angle 30°
Grinding wheel :E20SDC180(CBN Choose)
Power supply :220Vą10％AC
Motor output :600W
Rated speed :6000 rpm
Outer dimensions :350*300*280(mm)
Weight :23kg
Standard accessories:Collet, 2 flutes holder, 3 flutes holder, 4 flutes holder, case, Hexagon wrench, Brush, Power cord
Company Contact:
Contact Name: Jacky
Company Name: Dongguan Thor Machinery Co., Ltd
Email:
Tel: 0086-0769-81177281
Fax: 0086-0769-81177281
Street Address: No 1 Industrial Avenue,
Hengli Town, Dongguan City,
Guangdong Province, China
Website: https://www.thorgrinder.com
Member name: Thorgrinder
Country:
China
Member Since: 19 July 2011
Total Leads: 66 Thorgrinder Import Export Business Leads
Business focus: Drill Grinder, End Mill Grinder, Screw Tap Grinder, Chamfering Machine, Cutter Grinder, Tool Grinder, Saw Blade Sharpener, Lathe Tool Grinder
Chat:
Verify: Safe Import Export Tips
