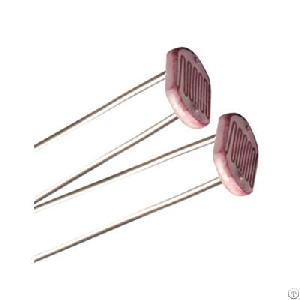

Product Description:
Feature of light sensitive resistor
Coated with epoxy
Good reliability
Small volume
Good spectrum
characteristic
Standard Type and Specifications
Specification Type Maximum
Voltage Maximum
power Spectrum
peak value Light
resistance
(10Lux)
(KΩ) Dark
resistance
(MΩ) Response time
(ms)
Increase Decrease
φ10
series GL10516 200 200 560 5- 10 1 30 30
gl10528 200 200 560 10- 20 2 30 30
gl10537-1 200 200 560 20- 30 3 30 30
gl10537-2 200 200 560 30- 50 5 30 30
gl10539 200 200 560 50- 100 8 30 30
Applications of light detecting resistor
Lead sulfide (PbS) and indium antimonide (InSb) LDRs (light-dependent resistors) are used for the mid-infrared spectral region.
Faq
1. What is the test condition?
Light photosensitive resistance Irradiate by 400-600Lux light for two hours, then test with 10Lux under standard light source A(as colour temperature 2856K)
Dark resistance Refer to the resistance value ten seconds after the 10Lux light is shut up.
2. Samples.
Free samples are available for testing.
