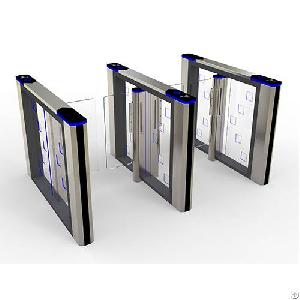

Fastlane Turnstile Jdsg-23
Posted at: Offers to Sell and Export | Posted on: Saturday 12 November 2022 2:38 am | Poster last visit: Thursday 24 August 2023 |
Product Category: Main
» Defense and Law Enforcement and Security and Safety Equipment and Supplies
» Security surveillance and detection
» Surveillance and detection equipment
» Security or access control systems
» Fastlane Turnstile Jdsg-23
Product Description:
Slim and stylish design fastlane turnstile, speedgate turnstile provides an ideal contactless solution
for access control and comfortable passage
Fastlane turnstile JDSG-23 is sturdy, durable and high-intensity impact resistent, designed with a slim and stylish look for narrow entry areas where autonomous entry and aesthetics are important. Fastlane optical turnstile JDSG-23 runs in a smooth, fast and reliable way, providing an ideal contactless solution for access control and comfortable passage in an intense flow of people, avoiding queues at the entrance and exit. The standard (600mm) and wide (900mm) lane widths are available to meet different application requirements, and the height of tempered glass panels 1.0m, 1.2m or 1.8m are available to provide increasing levels of security as required.
Fastlane turnstile JDSG-23 can be configured to allow access in a single direction or bi-directionally depending on actual requirements and simply integrates various access control systems to support muliple verification methods. In addition, speedgate turnstile JDSG-23 is designed in compliance with the most stringent safety and security standards, and widely used in corporate lobbies, high rise building entrances, luxury apartment complexes, universities.
Fastlane Turnstile Featurers
1. Accurate tailgating detection
2. Precision controlled movement of obstacles and detection of all obstructions
3. Reinforced detection to enhance user protection and manage passage of luggage
4. Obstacles automatically open to free the passage in case of power failure
5. Minimal footprint for maximum throughput
6. Unique detection algorithm prevents fraudulent entry with greater user safety
7. Smooth integration of proximity, magnetic card readers, biometric scanners and other user authentication systems
8. Transparent and elegant design
9. High-density matrix of infrared beams follows users’ progression through the gate
10.The swing panels are available in heights of 1.2m, 1.4m or 1.8m to provide increasing levels of security as required.
Fastlane Turnstile Applications
Offices
Banks
Public institutions
Data centres
Sensitive sites
Schools and universities
Fastlane Turnstile Parameters
Housing Material: #304 stainless sheet
Dimension: 1400 x 120 x 980mm
Power Supply : AC220V / AC110V, 50/ 60 Hz
Channel Width : 600~900mm
Drive Motor: DC 24V brushless motor or servo motor
Pass Speed : 35 ~45 persons per minute
Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction: Bi-directional
Communication interface: RS485
Gate open when power failure : Yes
Open Time: 0.2 second
Life Cycle: 5 million times
Working Temperature: -30°C~+70°C
Working Environments: Indoor, outdoor (with shelter)
