Fd 3600 Gear Hobber

Posted at: Offers to Sell and Export | Posted on: Tuesday 25 November 2008 8:49 am | Poster last visit: Wednesday 11 March 2015 |

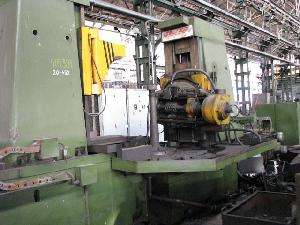

Product Photo:

fd 3600 gear hobber

Similar Products Catalog:
Products Photos Catalog 3600 Gear Hobber Photos Catalog

Product Description:

Gear Hobbing Machine FD 3600

~~~~~~~~~~~~~~~~~~~~



Max. Gear Diameter 3600 mm

Min. Gear Diameter

690 mm

Max. Module (max 3000 mm Gear Dia) 30 MOD

Max. Module (3000-3600 mm Gear Dia) 25 MOD

Min. Number of Teeth 30

Max. Number of Teeth 540

Max. Distance between centerline of Cutter and Work 2000 mm

Radial Feed .13 to 2.8 mm/rev

Axial Feed .34 to 7.5 mm/rev

Max. Diameter and Length of Cutter 350 mm x 400 mm

RPM of Hob 5-60

Hob Swivel - 45

Max. Vertical Travel 1000 mm

Diameter of Table 1900 mm

Max. Workpiece Weight 25,000 kgf

Capacity of Main Motor 15 Kw

Power Capacity in Total, 380V, 3 Phase - approx. 70 Kw

Space Required (L x W x H) 16,400 x 5,000 x 3,650

Weight of Machine, Approx. 52 Tons

Gear Hobbing Machine FD 800

~~~~~~~~~~~~~~~~~~~~

Max diameter 800 mm

Max. module of teeth 10

Axial travel of milling head 450 mm

Min. number of teeth

Location - Poland
