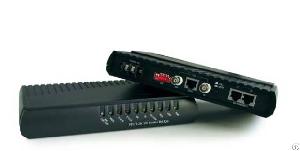

Fe1 / 10 100base-t Bridge Ic202-f
Posted at: Offers to Sell and Export | Posted on: Tuesday 28 August 2012 8:49 am | Poster last visit: Wednesday 11 December 2013 |
Product Description:
Introduction
FE1/10&100Base-T Bridge is designed based on ASIC chip, the chip adopts jitter reduced,
digital phase locked and clock distilled, E1 anti-jamming technology. The inner software and hardware are of modular design, integrating coding, decoding, message insertion and alarm, and make the circuit simple so as to improve the reliability of the device.
FE1/10&100Base-T Bridge provides 64K~2M bandwidth data transmission channels for Ethernet over E1 lines, connects two LANs by PDH devices etc. It is suitable for many situations, such as LAN expansion, networks isolation, WAN access, it can connect Ethernet to telecom transmission network, special network or WAN.
Features
Framed E1, data rate 64K~2.048Mbps is adjustable
Support the transmission of IEEE 802.1Q VLAN frame and maximum 1536Byte VLAN frame
DHCP packet filtering function can be enabled/disabled
Inside 32Kbyte MAC address memory space in the device, it can learn MAC address and refresh the list automatically
Inside up to 16Mbit register, features high data store-and-forward capability
Offer an Ethernet interface 10/100M, Full/Half duplex auto-negotiation
Offer MDI/ MDIX two Ethernet interfaces
Jitter tolerance and jitter transmission characteristic of E1 channel have high performance, which is superior to industry standard
Support CRC-4 alarm function
Two clock modes are selectable
The function that timeslots of remote device auto-follow local device settings can be enabled/disabled (only for this kind of devices）
Abundant loop back test functions, convenient for detection
E1 interface features 75Ω and 120Ω two types, convenient for field connection
The circuit is designed simply, the device works steadily
Company Contact:
Contact Name: Kay Wu
Company Name: Ccom Communications Technology Co., Ltd.
Email:
Tel: 86-10-64360088
Fax: 86-10-64378389
Street Address: East Side of 3rd Floor,
M8 Building, Electronic Science and Technology
Park, No.1 East of the Jiuxianqiao Road,
Chaoyang District, 100015, Beijing, China
Member name: CCOMCommunications
Country:
China
Member Since: 22 August 2012
Total Leads: 33 CCOMCommunications Import Export Business Leads
Business focus: Interface Converters, Fiber Modem, Optical Transceiver, Network Bridge, Fiber Optic Multiplexer
