Feeding Cutting Machine

Posted at: Offers to Sell and Export | Posted on: Friday 14 February 2014 2:23 am | Poster last visit: Monday 24 February 2014 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Raw materials processing machinery » Machinery for working wood and stone and ceramic and the like » Cutting machines » Feeding Cutting Machine

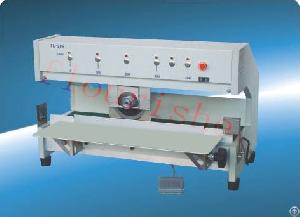

Product Photo:

feeding cutting machine

Similar Products Catalog:
Products Photos Catalog Feeding Cutting Photos Catalog

Product Description:

Spec:

Power: 110V/220V AC 60HZ/50HZ


Size: L 700x W400 x H450mm

Weight: 50kgs

Features:

(1)Any PC

board with V-CUT is appropriate for this machine.

(2)Operating motor optimizes drive separation velocity : 300/500MM/SEC.

(3)Keep the board stable when cutting the board. The upper circular knife moves from side to side, which guarantees high quality.

(4)Cutting by machine reduces stress and avoids soldered dot crack.

(5)Separating length : 400MM, PCB thickness: 0.5MM-3.2MM(cutting length: over 400MM can be customized).

(6)Residual PCB thickness: standard 1/3 PC board thick, MIN0.2MM，MAX0.8MM.

(7)V slot depth C minimum 0.25MM, the added external dimension after separating: 0.1MM-0.2MM.

(8)Install Photoelectric induction device. When the operator puts his hand into the cutting board area, the machine will stop operation automatically.
