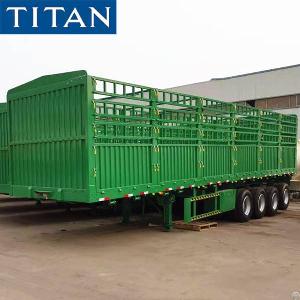

Fence Semi Trailer With Removable Walls For Sale In Zimbabwe
Posted at: Offers to Sell and Export | Posted on: Thursday 3 December 2020 9:43 am | Poster last visit: Friday 15 September 2023 |
Product Category: Main
» Commercial and Military and Private Vehicles and their Accessories and Components
» Vehicle bodies and trailers
» Product and material trailers
» Trailer and semi trailer parts
» Fence Semi Trailer With Removable Walls For Sale In Zimbabwe
Product Description:
What is a fence semi trailer?
The fence semi trailer use to load a wide range of products and materials,
like sand, bags, poultry, vegetables, fruits, clothes, appliances, and other daily necessities. Also the some bulk cargo, very widely used in the transportation industry. Livestock semi trailers can also be used to transport sheep, cattle and other animals. The semi trailer with removable walls can be added with a container turn lock to transport the container.
Fence semi trailer has a stake structure design. We have 2/3/4 axles fence trailer for sale, and load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.
Production process of fence semi trailer in TITAN factory
1. Stage of cutting steel sheet material
According to the drawings of each part produced by the design department, each part is cut out with a CNC cutting machine, such as beam webs, reinforcement plates, standard small accessories and so on.
2. Submerged arc welding beams, beams fixed
The second step is to fix the cut web and the upper and lower wing plates to weld points, and then weld the beam by submerged arc welding.
This step is very important. Both the fixing of the beam and the submerged arc welding are very demanding. If the technical process is not feasible, the beam will have problems. Can the trailer be okay if something goes wrong?
3. Opening, calibration beam, through beam
First cut out the web of the beam to cut out U-shaped holes through which the beams can pass, and then fix the welded I-beams in parallel. The result of comparing the beams is very important. If two I-beams have large parallel errors, very serious tire wear will occur.
4. Connect side beams, welding king pins
At this time, the main beam is basically formed, only the side beams are welded to form the frame structure. And the traction pin traction plate is welded to the position required in the contract, the welding process is required to be high, otherwise the fence semi trailer will be skewed.
5. Welding frame, welding suspension
At this time, the welding suspension must strictly control the size and maintain the squareness, otherwise it will cause tire wear.
6. Lay the bottom plate and removable wall
That is, the bottom plate and removable wall is fully welded on the frame. There is nothing to say at this step.
7. Frosted and painted
Frosting is the previous step of spray painting. Some manufacturers without shot blasting workshops will blow and polish the welding slag with high pressure gas at this stage.
Spray paint is usually sprayed in a well-ventilated shed. If you want to spray beautifully, you must first look at the coating and the technology of the technicians, but TITAN will spray very beautifully. Basically, you don’t have to worry about this. We will be very attentive!
8. Installation the bottom accessories and tires
After spray painting is completed, the bottom travel system is installed, and the assembled bottom is simply mounted and then precisely adjusted.
It should be noted that the tires air pressure at the factory is generally not the standard air pressure. You must confirm it again after you buy the trailer.
9. Storage, package and delivery
TITAN have professional staff to make package, all of them were trained constantly. Please notice that to prevent the fence semi trailer paint from being corroded by seawater to we spray a layer of wax on the surface of the cargo semi trailer before shipping. And covering poncho to prevent from the damp condition.
