Fine Wire Drawing Machine

Posted at: Offers to Sell and Export | Posted on: Friday 3 April 2009 8:25 am | Poster last visit: Tuesday 3 January 2012 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Metal forming machinery and accessories » Metal bending machines » Wire drawing machine » Fine Wire Drawing Machine

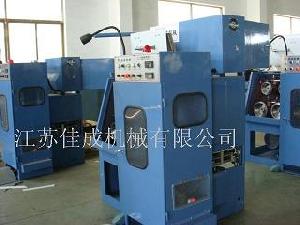

Product Photo:

fine wire drawing machine

Similar Products Catalog:
Products Photos Catalog Fine Wire Drawing Photos Catalog

Product Description:

Double inverter control, tension auto adjusting.

Unify 250 cast-iron main frame, precision machinery,



no shock, no deformation.

Transmits by high precision gear.

Capstan treated with wear- resistan spray

Machine type JCJX-24DA

Control system Traditional analog type/By computer digital control

Inverter control Dual Inverter control

Drawing dies No./Max. 24

Inlet diameter Φ0.50-Φ1.00mm

Outlet diameter Φ0.08-Φ0.25mm

Drawing line speed 2500m/min

Slip ratio of m/c 13%

Fix speed capstan slip ratio 8%

Frame Ironed cast

Capstan Ceramic plasma capstan

Main motor 11KW

Spooler motor 3.7KW



Company Contact:

Jiachengmachinery photo
Contact Name: Shelley Sun
Company Name: Zhangjiagang Jiacheng Electromechanical Co., Ltd.
Email: Email
Tel: 0086-512-58353359 or 86-512-58352669
Fax: 0086-512-58353355
Street Address: JuQuaio Economic
Development Zone, Tangqiao Town,
Zhangjiagang City, Jiangsu, PR China
Website: http://www.jsjcjx.com
Member name: Jiachengmachinery
Country: China-CN China
Member Since: 11 March 2009
Total Leads: 12 Jiachengmachinery Import Export Business Leads
Business focus: Wire Drawing Machine, Rigid Type Stranding Machine, Rod Breakdown Machine, Bunching Machine, Drawing, Annealing Machine, Tubular Stranding Machine
