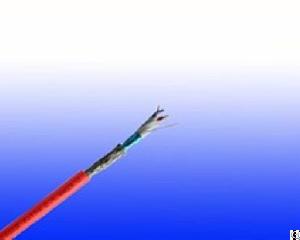

Fire Resistant Ftp Cat 3 Data Cables
Posted at: Offers to Sell and Export | Posted on: Monday 12 October 2015 3:38 am | Poster last visit: Monday 16 January 2017 |
Product Category: Main
» Power Generation and Distribution Machinery and Accessories
» Electrical wire and cable and harness
» Electrical cable and accessories
» Screened cables
» Fire Resistant Ftp Cat 3 Data Cables
Product Description:
Application
The cables are desgined for structure wiring, compatible with all known connection systems
according to EN 50173. Based on the design for structured wiring (found in IEC 61156 and BS EN 50288), this cable brings together high frequency data transmission and circuit integrity in a one pair, two pair and four pair cable that will continue to transmit data even when being directly attacked by fire.
Standards
Basic design to EN 50173
Voltage rating
60v
Cable construction
Conductors: Plain annealed copper wire, sized 0.64mm and solid according to IEC(EN) 60228 class 1.
Insulation: PE wrapping with fire resistant silicone rubber compound type EI2 as per BS 7655-1.1.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layer.
Overall Screen: Aluminum/polyester tape with tinned copper drain wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.)
Colour Code:
Sheath Colour: Red, white or black
Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -20°C - +90°C
Temperature range during installation (mobile state): -5°C - +50°C
Minimum bending radius: 8 x Overall Diameter
