Product Description:
Application
Used as power and control cable for protected installations inside and outside of rail and
transport vehicles, where handling andinstallation cost are an important factor.
Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

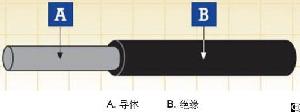

Construction
Conductor Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
Insulation LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 104)
Electrical & Mechanical Properties
Nominal Voltage 0.6/1 kV or 1.8/3 kV
Maximum Conductor Temperature 90°C ( fixed installation )
Minimum Permissible Ambient Temperature -25°C/-40°C ( fixed installation )
Bending Radius 3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm)
Chemical & Environmental Properties
EN 60684-2 No fluorine
EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
EN 50305 Resistance to ozone
Fire Performance for rolling stock application
EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
DIN 5510-2 Protection level 1/2/3/4
BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
Nf f 16-101 f0
