Product Description:

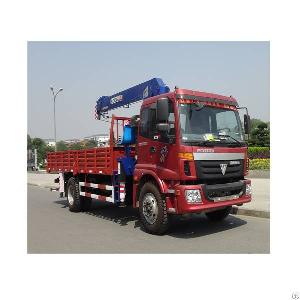

5 Ton XCMG Truck Mounted Crane
Our company is appointed by the Ministry of Industry and Information
of China which is a manufacturer for producing all kinds of special trucks, and the dump truck with chassis, box and hydraulic system is one of our trucks. The dump truck also names dumper or tipper truck which is cooperated with grab, loader and belt conveyor and used for transporting loose material (such as sand, gravel, or demolition waste) for construction. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. Our 5 ton truck mounted crane is your best choice.
Advantage Specifications
The Advantage of 5 Ton Dongfeng Dump Truck
1. With sealed structure and lifting hydraulic cylinder function, the dump truck can unload the sand, gravel or demolition waste by gravity to avoid leakage.
2. With enough volume, the dump truck can load more sand, gravel or demolition waste.
3. The whole structure is solid and tight, it can be worked constantly.
4. The side board and top board can be turned automatically.
5. With mature, strong and balanced hydraulic lifting function, the dump truck’s capacity can be reached 10-20T.
6. With automatic turning angle, it saves unloading time and labor to a great degree.
7. Narrowing transporting period, improving production efficiency.
8. With saving transporting cost, the dump truck is popular for transporting.
The Specification of 5 Ton Dongfeng Dump Truck
5Ton Dongfeng Dump Truck
Overview
Name 5 Ton Dongfeng Dump Truck
Dimension(LxWxH) 5990x1960x2380(mm)
Total Mass 8050Kg
Rated Payload 5000Kg
Curb Weight 3050Kg
Passenger 3
Approach/Departure Angle 19/15
The Parameters of Chassis
Manufacture/Model Dongfeng/EQ1060TJ20D3
Driving Type 4*2 left/right hand drive
Wheel Base 3800 mm
Gearbox Six speed lever with five speed forward and one reverse, manual
Front/Rear Track 1506/1466(mm)
Tyre 7.00-16
The Number of Tyre 6+1(spare tyre)
Front/ Rear Suspension 1032/1658(mm)
Leaf Spring Number 8/9+5, 6/8+4
The Parameters of Engine
Manufacturer/Model Chaocai/CY4102-C3F
Rated Power 95hp/70kw
Fuel Type Diesel
Displacement/Capacity 3856ml
Emission Standard Euro3
Cylinder Straight/4/intercooling
Max. torque 340N.m
Velocity 3200rpm
