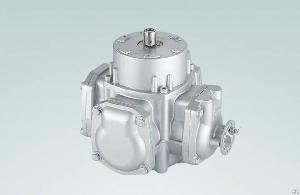

Flow Meter Rsj-50 For Fuel Dispenser
Posted at: Offers to Sell and Export | Posted on: Wednesday 24 May 2023 2:01 am | Poster last visit: Tuesday 17 October 2023 |
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Measuring and observing and testing instruments
» Liquid and gas flow measuring and observing instruments
» Flowmeters
» Flow Meter Rsj-50 For Fuel Dispenser
Product Description:
The flow meter RSJ-50 is installed in the hydraulic compartment of the fuel dispenser. And it is designed
to measure the volume of fuel passing through the hydraulic system of the fuel dispenser. In general, for this piston flowmeter, its accuracy is ±0.2%. Compared with similar products, this accuracy is higher and its lifespan is long-lasting. The flowmeter is an important guarantee for the metering function of the tanker. It can still work normally in an ultra-low temperature environment of minus 40 degrees.
Material & Structure of Flow Meter RSJ-50
◈Body material: aluminum alloy housing, stainless steel sleeves, composite piston seal, stainless steel rocker mechanism
◈Structure: stainless steel cylinder liner, four-piston strokes
◈Advantage: novel appearance, small body, high strength, good wear resistance, accurate measurement, long service life.
Working principle
The principle of operation of flow meter RSJ-50 is based on the passage of fuel through a metering device. Inside the flowmeter housing, it has four cylinders with pistons operating due to the kinetic energy of the liquid passing through them. The pressure of the liquid is created by an external oil transfer pump – ZYB-50. The pistons are placed in pairs on two connecting rods in four mutually perpendicular measuring cylinders with a volume of 0.125 liters each. Fuel alternately enters each of the four cylinders, then is fed to the output of the volume meter. Pistons with connecting rods under the pressure of fuel perform reciprocating motion in the cylinders. Connecting rods rotate a vertically positioned crankshaft, the free end of which protrudes outside the housing and is connected to the pulse generator by means of a coupling. It can complete with a rectangular O-ring IO50-09. Besides, O-rings are oil & gas-resistant with an operating temperature range from -40°C to +55°C.
Technical Parameters of Flow Meter RSJ-50
Model RSJ-50
Flow rate 5L-60L/min
Discharge rate per revolution 0.5L
Adjustable Minimum Volume 0.05%
Accuracy ±0.2%
Repeatability ≤0.07%
Company Contact:
Contact Name: Bonnie
Company Name: Zhengzhou Jayo Petroleum Machinery Co., Ltd
Email:
Tel: 18595685086
Fax:
Street Address: 97 Xushui Road,
Hi-tech Development Zone, Zhengzhou,
Henan 450000
China
Website: https://www.jayopetromachinery.com/
Member name: JayoPetro
Country:
China
Member Since: 22 October 2022
Total Leads: 7 JayoPetro Import Export Business Leads
Business focus: Fuel Hose, Fuel Nozzle, Pump, Flow Meter, Fuel Dispenser
Chat:
Verify: Safe Import Export Tips
