Product Description:
Application

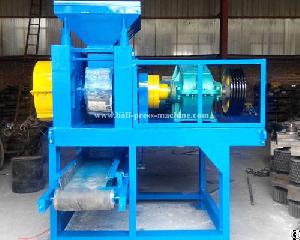

Flue dust briquette machine is using for press the coal powder, iron powder, coking coal,
aluminite powder, scrap iron, oxide-scale, carbon powder, charcoal powder, slag, gypsum, tailings, sludge, Kaolin, activated carbon, dust coke and all kinds of powder, powder materials, waste materials, offscum scrap. Widely used in refractory, power plant, metallurgy, chemical plant, energy resource, transportation, heat supply, etc. The products which after pressed by the iron powder briquette machine are energy saving, environmental protection, convenient transportation, improve the waste using rate, has good economic benefit and social benefit.
Working Principle
The main structure of flue dust briquette machine are transmit system, mainframe, reducer, belt pulley, pre-pressing device, ball groove alignment device of the roller sleeve, hydraulic system, electronic control and other parts. During the working process quantitative material, evenly add into the pre-pressing device, keep the material quantity stable inside the pre-pressing device, then the pre-pressing spiral of the pre-pressing device force the materials into the middle of the roller for pre-compressed and transported to two arc-shaped notches on the roll, two roller surface evenly distributed the same roll nest shape, through the teeth combined transmission, so that two pairs of rollers constant, reverse rotation, bite the materials which delivered to the groove notch into the groove and forced compression, with rollers continue to rotate, off ball under the function of its elasticity and gravity, as the motor continuous rotation for periodic rotation of the pressure roller pressing movement, to achieve mass production.
Working Requirement of Flue Dust Briquette Machine
1.Particle size of the material should smaller than 1mm in 30-40%; 1mm-2mm in 30-40%, the biggest particle size should smaller than 3mm around 10%.
2.Water content should be 5%( water content has biggest impact in ball forming, it has big different when the water content is more or less, so ensure the water content are evenly.)
3.Materials are not allowed to have any iron block or other high hardness block impurities inside to avoid the damages of the roller and shaft of the briquette machine, users should install a iron removal equipment.
