Product Description:
Introduction

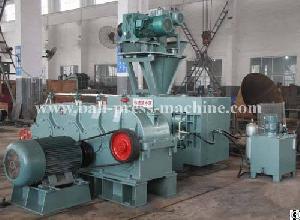

Fluorite powder briquette machine can work directly after the raw materials crushed, no
need to add water. For examples: Aluminum scrap, activated carbon alumina, quicklime, etc. The purpose is to reduce the dust, control the capacity, recycling, improve the transportation futures and other production design.
Application
Fluorite powder briquette machine mainly used in colored and black metal mineral powder briquette making, furnace smelting directly, increase the added value. All the metallurgical industry, waste, accessories need on the stove be made by the ball machine. For example: dust, mud pool, oxide skin, slag, iron powder, aluminum powder, silicon manganese ore, etc.
Working Principle
Fluorite powder briquette machine powered by the electromagnetic motor speed. through the belt pulley, cylindrical gear reducer, to the drive shaft by pin coupling. The driving shaft and the driven shaft be ensured synchronous operation through a gear .there is a hydraulic device behind the Passive bearing seat. Screw feeding driven by electromagnetic motor speed control. Put the material into feeding port through the belt wheel and the worm reducer. Cause the constant of the electromagnetic motor seed control until the weight of the screw feeder is equal to the needed weight, then the constant feeder pressure make the ball with stable quality. but If the feeding quantity is too high will lead to the electrical of the feeder machine overload. And also, it’s not enough to make a ball if the feeding quantity is too small. So Proficiency in operation skills is an important condition to guarantee the normal work of the pressure ball machine.
