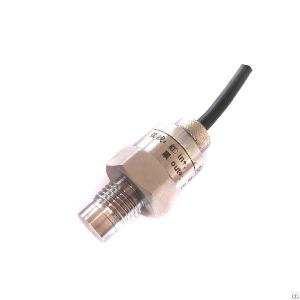

Flush Diaphragm Pressure Transmitter Xy-ptgp
Posted at: Offers to Sell and Export | Posted on: Saturday 18 May 2019 1:34 pm | Poster last visit: Sunday 23 June 2019 |
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Measuring and observing and testing instruments
» Pressure measuring and control instruments
» Pressure transmitters
» Flush Diaphragm Pressure Transmitter Xy-ptgp
Product Description:
Flush Diaphragm Pressure Measurement; Meets 3-A Sanitary Standards
Excellent Reverse polarity, instantaneous
Overcurrent and Overvoltage protection, Applied to High stability and sensitivity for high temperature, high viscosity and the medium are prone to clogging, or Food, Pharmaceuticals and Biotechnology
Typical Feature
Clamp flush diaphragm meets 3-A Sanitary Standards
Stainless steel shell can be used in width Measured Medium
Output signals 4～20mA, 0～5VDC, 0~10VDC, 1-5VDC
Reverse polarity, instantaneous Overcurrent and Overvoltage protection
Applied to High stability and sensitivity for high temperature, high viscosity and the medium are prone to clogging, or Food, Pharmaceuticals and Biotechnology
Customized structure diversification is available.
Flush Diaphragm Pressure Transmitter XY-PTGP Brief Introduction
XUYAN XY-PTGP Stainless steel Pressure Transmitter, with stainless steel shell and laser-welded construction, is designed to suit 3-A sanitary standards; IP65 Ingress Protection, and Safety Explosion-proof, these performances makes it able to withstand harsh rugged application environments.in addition, this flush diaphragm pressure transducer also has the following advantages: high precision, fast response, small size, light weight, stable and reliable, strong overload capacity.
High stability and sensitivity for high temperature, high viscosity and the medium is prone to clogging, all this performance makes XY-PTGP flush diaphragm pressure transmitter/transducer can be used in food and beverage, pharmaceuticals and biotechnology, chemical glue, mobile working machine and tunneling application, such as air, oil, water and others fluid; Thoughtful specialized electric circuit design; ultra-high precision absolute pressure calibration equipment calibration; Accuracy class 0.25%; 0.5%. 4～20mA, 0～5VDC, 0~10DC standard electrical signal output with remote transmission alternative; Measurement Range: -100KPa~60 MPa., other measurement range is optional. Temperature Stability Index can be increased to 0.02%/FS/℃ by using sensor temperature self-compensation and specialized circuit debugging.
Company Contact:
Contact Name: Tyler Tao
Company Name: Shanghai Xuyan Precision Technology Co., Ltd.
Email:
Tel: +86 215 9241315
Fax:
Street Address: F2, No.979 Yunhan
Road, Nicheng Town, Pudong District,
Shanghai, Shanghai, Shanghai 201306
China
Website: http://www.xvyanprecision.com/
Member name: xuyanprecision
Country:
China
Member Since: 18 May 2019
Total Leads: 20 xuyanprecision Import Export Business Leads
Business focus: Pressure Transmitters, Pressure Gauges, Pressure Sensor, Pressure Switches, Pressure Controllers, Liquid Level Sensor, Liquid Level Guage
Chat:
Verify: Safe Import Export Tips
