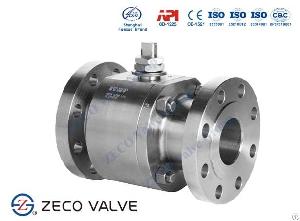

Forged Ball Valve
Posted at: Offers to Sell and Export | Posted on: Tuesday 30 July 2019 8:08 am | Poster last visit: Sunday 15 September 2019 | Targeted Countries: Europe | Rwanda | Singapore
Product Category: Main
» Tools and General Machinery
» Pneumatic machinery and equipment
» Pneumatic tools
» Pneumatic tool set
» Forged Ball Valve
Product Description:
Description of Forged Ball Valve:
ZECO forged ball valve is divided into forged two-piece ball valves
and forged three-piece ball valves, as well as small diameter forged ball valves and large diameter forged ball valves, which are widely used in various high-pressure industrial conditions. Usually pressure at 600 lb, 800 lb, 900 lb, 1500 lb, the working temperature in the various pipeline - 46 ℃ ~ 425 ℃. Of course, 150LB and 300LB of low pressure are also frequently used in the list of users. Its materials also include ASTM A105, ASTM A182 F304, ASTM A182 F316 and other forging materials. ZECO is a famous valve company.
Features of Forged Ball Valve:
1. ZECO forged steel ball valve has double piston effect seats which are pressure energized in both directions. So the seat rings are always pushed against the ball by the pressure from upstream/downstream or from the cavity. If the upstream seat fails, the downstream seat can still ensure a tight seal. Widely used in specific applications or for some pipe pressure testing. Since double piston effect valves do not have the self-relieving function, the automatic cavity-pressure relief valve shall be provided, unless otherwise agreed;
2. ZECO forged ball valve has one self-relieving seat. If the force created by the body cavity pressure is greater than the preloaded spring force plus the force created by the pressure from pipeline, the cavity pressure releases via the self-relieving seat, the double piston effect seat still functions a tight seal;
3. ZECO forged ball valve is available in additional configurations upon request, like Delta ring seat design, it's easier to seal;
4. ZECO forged ball valve is available in additional configurations upon request, like Lipseal design, it's easier to preserve.
Company Contact:
Contact Name: Jerry Zhao
Company Name: Zeco Valve Group Co., Ltd.
Email:
Tel: 86-21-59599008
Fax: 86-21-59599006 Ext.906
Street Address: No.3999,
Caoan Road, Jiading District
Shanghai, Shanghai 200080 China
Website: https://zecovalve.com
Member name: zecovalve
Country:
China
Member Since: 30 July 2019
Total Leads: 23 zecovalve Import Export Business Leads
Business focus: Trunnion Mounted Ball Valve, Floating Ball Valve, Top Entry Ball Valve
Chat:
Verify: Safe Import Export Tips
ZECO forged ball valve is divided into forged two-piece ball valves
and forged three-piece ball valves, as well as small diameter forged ball valves and large diameter forged ball valves, which are widely used in various high-pressure industrial conditions. Usually pressure at 600 lb, 800 lb, 900 lb, 1500 lb, the working temperature in the various pipeline - 46 ℃ ~ 425 ℃. Of course, 150LB and 300LB of low pressure are also frequently used in the list of users. Its materials also include ASTM A105, ASTM A182 F304, ASTM A182 F316 and other forging materials. ZECO is a famous valve company.
Features of Forged Ball Valve:
1. ZECO forged steel ball valve has double piston effect seats which are pressure energized in both directions. So the seat rings are always pushed against the ball by the pressure from upstream/downstream or from the cavity. If the upstream seat fails, the downstream seat can still ensure a tight seal. Widely used in specific applications or for some pipe pressure testing. Since double piston effect valves do not have the self-relieving function, the automatic cavity-pressure relief valve shall be provided, unless otherwise agreed;
2. ZECO forged ball valve has one self-relieving seat. If the force created by the body cavity pressure is greater than the preloaded spring force plus the force created by the pressure from pipeline, the cavity pressure releases via the self-relieving seat, the double piston effect seat still functions a tight seal;
3. ZECO forged ball valve is available in additional configurations upon request, like Delta ring seat design, it's easier to seal;
4. ZECO forged ball valve is available in additional configurations upon request, like Lipseal design, it's easier to preserve.
