Product Description:

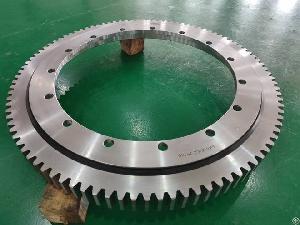

Slewing ring bearing RKS.061.200944
Bearing RKS.061.200944 1046.4X872X56 MM
Slewing bearing RKS.061.20
0944 with external teeth
Bearing factory items:RKS.061.20 0944
Bearing old type:RKS.061.200944
Bearing boundary Dimension:1046.4X872X56 MM
ID(inner diameter)/Bore:872 MM
OD(outer diameter):1046.4 MM
Width/Height/thickness:56 MM
The bearing RKS.061.20 0944 structure:four point contact slewing bearing
The bearing RKS.061.20 0944 precision grade:P5 P6 Grade
Quality standard:GB307 Rolling bearing technical requirement
Bearing boundary inch size:41.19x34.33x2.20
Bearing outer diameter inch:41.19
Bearing inner diameter inch size:34.33
Bearing height inch:2.20
Outer Ring material:42CrMo, 50Mn
Inner Ring material:42CrMo, 50Mn
Weight:77 KGS
Basic load rating C :(KN) 286
Basic load rating Co:(KN)2340
Rolling roller/ball brand LYC brand
Teeth parameter
Do=1032mm
m=8
z=129
Teeth structure External teeth
Brand:JHB OR OEM
Weight:(kgs) 77
Clearance: C1 C2 C0 C3 C4
Port: Shanghai /Qingdao seaport
Transport Package: Carton+Wooden case
Country of Origin: China
Lubrication:Oil or Grease oil hole and oil groove in the outer ring
The seaport name:Shanghai or Tianjin or qingdao seaport
HS code:8482800000
Load Direction:Radial
Bearing Service:offer drawing and technical support
Transport Package :Wooden Box/Cardboard Box
Service:Customized bearing, Customer's bearing drawing, or samples accepted;Competitive price bearing: factory outlet.
LuoYang jinshuo Precision bearing is a professional bearing manufacturer, as one set of production and R & D, production, sales and service. We have a wealth of experience in the design, manufacture and sale of heavy and large slewing ring bearings, pinion, cylindrical roller bearing, tandem roller bearing, rotary table bearing, spindle bearing and non-standard bearings
Slewing bearing is one of our main products.
1.four point contact ball slewing bearing (no gear, external gear, internal gear);
2.two row ball slewing bearing (no gear, external gear, internal gear);
3.crossed cylindrical roller slewing bearing;(no gear, external gear, internal gear);
4.three row cylindrical roller slewing bearing;(no gear, external gear, internal gear);
5.crossed tapered roller slewing bearing; (no gear, external gear, internal gear);
6.ball and roller combined slewing bearing. (no gear, external gear, internal gear);
Our bearing had exported to more than 20 countries. Such as France, Germany, USA, Spain, Chile, Mexico, Israel, Singapore, Brazil, Netherlands, Sweden, Pakistan, Indonesia, Canada, Serbia, Hungary, Turkey, Austria
