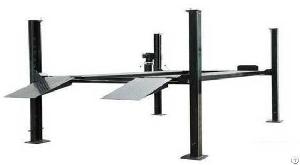

Product Description:
Characteristics
1. Hydraulic drive, steel rope lift, hydraulic system makes the system very low noise
and steady working;
2. Single unlocked by manual or four sides unlocked automatically with anti-fall devices; the anti-fall blocks installed in the columns will prevent the car platform to fall informally to insure safety of the car;
3. Self-lubrication bearing to guarantee the safety at any height;
4. Slippery runways and the traction plate for convenient use; the distance between two runways plates are fixed, there is movable plate to receive oil in the middle;
5. Appearance with high quality painting, green environment protection without lead, beautiful color, anti-rust painting for long time use;
6. This park lift is convenient and reliable, easy operation, quick installation, simple installation at site, no welding, no cutting, low requirements of land area; and it is movable, easy re-installation to adapt all sites;
7. Lift weight can reach 3mt for double cars parking;
8. Adaptable at family garage with a parking space L5.2m, W2.7m, H3.6m;
Parameters of this Park Lift
Noise: 75dB max; Lift time: 60S
Fall time: 90S Max lift weight: 3mt
Max lift height: 1800mm Height of system: 2086mm
Central column width: 2353mm Distance of runway plates: 949.5mm
Motor power: 2.2kw Voltage: 220V/380V
Work pressure: 14Mpa Unlocked style: Manual/Auto
Description
This park lift can be used for family, apartments, hotels and other places; it can be designed based on site dimensions; 1 car space will park two cars to save more spaces; it can be installed both inside room and outside; For family use, it can provide 220V power; it can be used both for parking and repairing cars; Special-made for SUVs OK.
Appearance and coating
1. Painting
2. Hot galvanizing, Price will be USD160 more than ordinary painting;
Structures: Composed of steel frame, transmission system, pallet, safety protection devices, electric control system and operation system;
