Product Description:
FRP On-Site Large Storage Tank FRP Storage Tank manufacturer FRP Vertical Storage Tank
Professional
manufacturer of large FRP storage tank, customizable parameter selection, technological equipment, welcome to consult.
Product Description
Specification: DN8000*10000

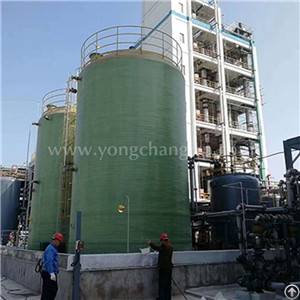

Due to transportation problems, large-scale FRP storage tanks need to be made on site by the user. Our company adopts imported American advanced vertical technology and independently developed FRP large container vertical winding equipment, which is made by the latest version of CNC filament winding machine. The accessories are completed in the factory. The cylinder body is wound, assembled and inspected. The inspection is completed on site.
150 200 300 400 500 600 700 800 900 1000 1200 1400 1600 1800 2000 2200 2400 2500 3000
5000 7670 10220
6000 7100 10640 14180
7000 7830 10420 13020
8000 5990 7980 9970 11960
9000 6310 7880 9460 11030 12600
10000 8940 10220 11490 12760 15130
11000 9500 10550 12650 14760
12000 10670 12410 14180 15950
13000 9070 10570 12080 13590 15090
14000 10420 11720 13020 14320
15000 9080 10220 11350 12480 13610 14180
2600 2800 3000 3200 3400 3600 3800 4000 4200 4400 4600 4800 5000
16000 12950 13950 14950
17000 11500 12360 13250 14120 15000
18000 10250 11030 11820 12600 13400 14180 14960
19000 9200 9900 10620 11320 12020 12720 13420 14150 14850
20000 8950 9580 10220 10850 11480 12120 12760 13400 14020 14660
21000 9850 10420 11000 11580 12150 12720 13300 13880 14460
22000 9500 10020 10550 11080 11600 12120 12650 13180
23000 9160 9650 10120 10620 11100 11580 12050
24000 9300 9750 10190 10630 11080
25000 8960 9390 9800 10200
Note: m3=cubic, H=height, D=volume.
The Yongchang-branded glass fiber reinforced plastic (FRP) storage tanks are well designed and manufactured according to customer demand, with various shapes, sizes and configurations. We can manufacture storage tanks of any specification and pressure, which can be made into composite containers such as PVC/FRP, PP/FRP, PVDF/FRP according to the conditions of use. Our designers can calculate the hoop stress, axial stress, and bending Poisson’s ratio coefficient of the product according to your available space, chemical storage requirements and applicable natural conditions, and then give the detailed manufacturing process parameters, such as product selection, product thickness, and layering. All of our designed containers meet industry standards, such as ASTM D3299 for filament-wound storage tanks and ASTM D4097 for contact molded storage tanks.
Advantages of FRP storage tank:
(1) Light weight and high strength
The density is between 1.5~2.0, only 1/4~1/5 of carbon steel, but the tensile strength is close to or even higher than that of carbon steel
2) Good corrosion resistance
3) Good electrical performance
It is an excellent insulating material used to make insulators.
Scope of application
Media that can be stored: inorganic acids, organic acids, bases and hydroxides, elements, gases, and other inorganic compounds, alcohols, aldehydes, ketones, ethers, esters, hydrocarbons and petroleum products, halogen-containing organic compounds and other organic compounds, etc. medium.
