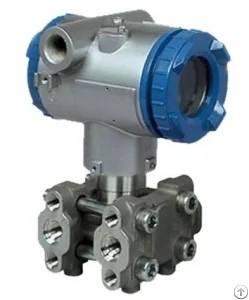

Fuji Fkg / Fdg Pressure Transmitter
Posted at: Offers to Sell and Export | Posted on: Wednesday 2 November 2022 7:14 am | Poster last visit: Wednesday 2 November 2022 |
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Measuring and observing and testing instruments
» Pressure measuring and control instruments
» Pressure transmitters
» Fuji Fkg / Fdg Pressure Transmitter
Product Description:
FUJI FKG pressure transmitter(DC4~20mA+HART protocol)
FUJI FDG pressure transmitter(FOUNDA TION Fieldbus
protocol or PROFIBUS-PA)
1.Product Introduce
Fuji FCX -AIII version FKG/FDG pressure transmitter accurately measures pressure and converts it into an output signal of 4~20mA DC.The transmitter utilizes a unique micromachined capacitance silicon sensor with advanced floating capsule structure and newer micro-processing technology, the transmitter has high accuracy, good stability, safety and reliability, and easy to use.
FCX-AIII series transmitters with safety funtion have obtained the certificate of SIL certification by TÜV.
2:Products Features
1. High accuracy
Pressure transmitter can be carried out with high accuracy measurement in the range of 0.32-50000kPa.
Standard accuracy: ± 0.065%
High accuracy (optional) ;± 0.05%/± 0.025%
2. Excellent operability and easy to use
It has an excellent operability and easy to use in any application.
All range meet the requirements of explosion-proof.
5-digit digital indiactor
·Built-in RFI filter and lightning arrester
Built-in local configurator with 3 push buttons
3. The transmitter can communicate using FUJI, HART, communication protocol, and also can use FOUNDATION FIELDBUS or PROFIBUS protocol after changing the electronic circuit.
3 Products Specification:
Measured fluid: Liquid, Gas, or vapour
Output signal: (1)FKG: DC4~20mA+HART protocol
(2)FDG: FOUNDA TION Fieldbus protocol or PROFIBUS-PA
Power Supply: General :DC10.5 - 45V
Intrinsic safety: DC10.5-26V
With arrestor:DC10.5 -32V
4: Parameter table
Diaphragm Materials ;SUS316L, Tantallum, monel, Hastelloy-C
Accuracy ranting ; For spans greater than1/10 of URL ±0.1% or ±0.2%, high accuracy;Optional; ±0.065%
Output signal/ Power supply:DC4-20mA / DC10.5~45V (Non-Explosion)
Promote/inhibit: -100%~+100%URL
Containment structure;JIS C0920 Immersion type;Equivalent IEC IP67, NEMA6/6P
Explosion-approvals:NEPSI, FM, ATEX, IECEx, CSA, TIIS
Ambient temperature;Sensor unit: -40~350;C / Electronics: -40~85C
Process connection :1/2-14NPT, Rc1/4, RC1/2, ¼”-18NPT, M20 X 1.5 (oval flanges on request)
Ordering information
1. Model code
2. Span
3. Please select the direction of output (Notuse/OVER/UNDER) when the transmitter is fault (Burnout). If unspecified, it is Notuse.
4. Please select the output mode (linear or square root). If unspecified, it is linear mode.
5. If the scale of indicator is selected to actual scale (9th code: D, H, P, S), please select the items of display (digit, scale, unit, etc).
6. Please select the tag plate according to need.(up to 14 digit, consist of lettters and numbers).
Company Contact:
Contact Name: Dorothy Li
Company Name: Xian Tosi Da Technology Co., Ltd
Email:
Tel: 18629094830
Fax:
Street Address: Zhuque,
Street
xian, Shaanxi
710065
china
Other Contact Info:
Whatsapp: 18629094830
skype: Dorothy-lg
Member name: XianTosiDaTechnologyCo
Country:
China
Member Since: 02 November 2022
Total Leads: 6 XianTosiDaTechnologyCo Import Export Business Leads
Business focus: Fuji Transmitter, Koso Positioner, Fuji Oxygen Anaylzer
Chat:
Verify: Safe Import Export Tips
