Full Height Sliding Turnstile Jdpyz-6

Posted at: Offers to Sell and Export | Posted on: Saturday 12 November 2022 2:31 am | Poster last visit: Thursday 24 August 2023 |

Product Category: Main » Defense and Law Enforcement and Security and Safety Equipment and Supplies » Security surveillance and detection » Surveillance and detection equipment » Security or access control systems » Full Height Sliding Turnstile Jdpyz-6


Product Photo:

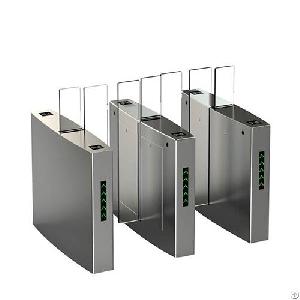

sliding turnstile jdpyz 6

Similar Products Catalog:
Products Photos Catalog Sliding Turnstile Photos Catalog

Product Description:

Affordable full height sliding turnstile, sliding optical turnstile is designed with intuitive colored



LED lights guiding users from entry through the authorization and onto the secured side

Full height sliding turnstile JDPYZ-6 is made of high quality stainless sheet and designed with intuitive colored LED lights guiding users from entry through the authorization and onto the secured side, providing a fast, durable, smooth way with low noise and low power consumption. By using an array of optical sensors to determine the number and direction of persons passing through the security turnstile lane, sliding turnstile gate JDPYZ-6 efficiently controls pedestrian access between public and secure areas, and releases the passage for free access upon receiption of a valid open signal and close automatically affter passage. The unauthorized person attempts to tailgate on a valid entry, or entry without authorization will be recognized and trigger sound alarm.

The baffle height of full height sliding turnstile JDPYZ-6 can be max 1800mm to make climing over them more difficuty for high security, and designed with stylish and modern look meeting the latest architectural trends, and runing at a rather fast speed, slding gate turnstile JDPYZ-6 is widely used In upscale corporate lobbies, high rise building entrances, luxury apartment complexes, universities, and anywhere autonomous entry and aesthetics are important.

Full Height Sliding Turnstile Features

1. Intuitive approach detection

2. Precision controlled tempered glass obstacles

3. Designed in compliance with the most stringent safety and security standards

4. In case of emergency the obstacles can be unlocked with a simple push to automatically open

5. Electro-mechanical locking to withstand forced entry attempts

6. Glass obstacles up to 1800mm without or with straight or sloping overhang

7. Silent and smooth in operation

8. Smooth, swinging-motion glass barriers

9. Unique detection system accurately tracks the passage of a single authorised user

10. Stylish and flexible design able to virtually blend infinite aesthetics within architectural interior needs

Full Height Sliding Turnstile Applications

Offices

Banks

Public institutions

Data centres

Sensitive sites

Schools and universities

Full Height Sliding Turnstile Parameters

Housing Material : #304 stainless sheet

Dimension: 1400 x 350 x 980mm

Power Supply: AC220V / AC110V, 50/ 60 Hz

Lane Width: 500mm~550mm

Drive Motor: DC 24V brushless motor

Pass Speed: 35 persons per minute

Input Interface: Dry contact signal or +12V level signal or DC12V pulse signal

Rotating Direction: Bi-directional

Communication Interface : RS485

Rest Time after Power On : 3 seconds

Open Time : 1 second

Life Cycle: 3 million times

Working Temperature: -30°C~+70°C

Working Environments: Indoor, outdoor (with shelter)

What is full height sliding turnstile?

Full height sliding turnstile is another classic type of optical turnstiles which is designed to regulate the flow of authorised pedestrians and deny unauthorised access. Coupled with an array of optical sensors to determine the number and direction of persons passing through the lane, sliding full height turnstile provides convenient, fast, and secure access. Equipped with sliding flaps closed strait horizontally, which are made of tempered glass, sliding turnstile gate is distinguished from other waist heigh turnstiles by the glass sliding panels which can be supplied up to 1.6 metres high, providing higher security level than other waist high optical turnstiles, as it is impossible to hurdling over them. Sliding turnstile gate is compatible with various access control systems and auto open in case of power failure or in emergency. Fast throughput, reliability, and stylish design makes full height sliding turnstile the perfect solution for applications where access security is required and is a popular choice for office buildings, business centres and public buildings.

How does an full height sliding turnstile works?

Full height sliding turnstile is equipped with sliding flaps closed strait horizontally which operate in two-directional movements. When closed, the sliding flaps meet each other to form a barrier between restricted area and public area. When opened, the wings fully retract into the cabinet, creating free passage. Slinding turnstile gate is supplied with infrared sensor to ensure that only one person enters for each authorized credential at one time. The pedestrians shows their valid credential before entry, the full height sliding turnstile will open for free access. Closure takes place immediately after passage or after and adjustable holding-open time, preventing unauthorized passage or tailgating. The opening time and closing time can be progranned depened on the height of the sliding faps. In case of power failure of in emergency, the obstacles can be unlocked with a simple push to automatically open.

Full height sliding turnstile types

According to different drive motor, full height sliding turnstiles can be divided into

Brush motor full height sliding turnstile: uses DC24V brush motor, it is an ideal crowd control managment requiring simple and cost-effective operation.

Brushless motor full height sliding turnstile: uses DC24V brushless motor, featuring fast opening speed, barrier-free, silent, safe to use, easy to use and maintain. Because of modular design, simpler structure and more convenient maintenance. The brushless motor is powerful, no wear, no noise, and its life is much longer than other motors.

The cost & price of brushless motor full height sliding turnstile is higher than brush motor full height sliding turnstile

What are advantages of full height sliding turnstile?

1. Equipped with high physical barrier to effectively prevent people from crawling or climbing over which contributes to a higher level of security.

2. Provide fast, safe and convinient passage

3. In case of power failure, doors will automatically retract for a clear passage, making fast evacuation possible.

4. Obstacle safety detection with audible alarm, convenient to maintain and use.

5. With a variety of operating models and functions, it can be programmed to be bi-directional access, or exit by sensors.

6. Equipped with infrared photo beam sensors, mechanical double anti-folding feature, effectively protects against pedestrian injuries.

7. Reset automatically, anti-tail, anti-reverse intrusion, dual anti-pinch and stop unauthorized access.

8. Voice announcement of unauthorised use.

Full height sliding turnstile applications

Full height sliding turnstile provides aesthetic and effective control the access of persones under high security requirements, widelty used for train/metro stations, commercial centers, stadiums, schools, government and private sector buildings, etc.
