Fully Automatic 2.5-50 Sqmm 13awg-1 / 0awg Wire Stripping Machine

Posted at: Offers to Sell and Export | Posted on: Sunday 20 January 2019 11:38 am | Poster last visit: Sunday 20 January 2019 |

Product Category: Main » Tools and General Machinery » Hand tools » Holding and clamping tools » Wire stripping pliers » Fully Automatic 2.5-50 Sqmm 13awg-1 / 0awg Wire Stripping Machine

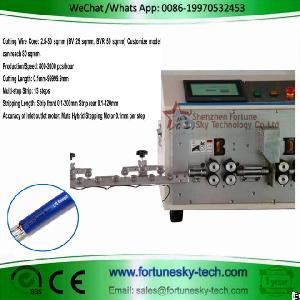

Product Photo:

2 5 50 sqmm 13awg 1 0awg wire stripping machine

Similar Products Catalog:
Products Photos Catalog Sqmm 13awg 0awg Wire Photos Catalog

Product Description:

This fully automatic 13awg-1/0awg (2.5-50sqmm) wire stripping machine uses a hybrid drive microcomputer



control system of the whole LCD screen, in the processing range can be arbitrarily set the length of the cutting wire, stripping length, quantitive, time to start function, manufacturing for large square wire cable, especially for processing of the automotive, power distribution box (BV cable, BVR cable), can customize to process wire diameter 10mm/3/0gauge/80sqmm wire.

Technical Paramters:

Model No.: BJ-980

Function: Wire cut, both-ends strip, multi-step strip

Cutting Wire Core: 2.5-50 sqmm (BV 25 sqmm, BVR 50 sqmm) Customize model can reach 80 sqmm.

Production/Speed: 800-2000 pcs/hour

Cutting Length: 0.1mm-99999.9mm

Multi-step Strip: 13 steps

Stripping Length: Strip front 0.1-200mm Strip rear 0.1-120mm

Accuracy of inlet outlet motor: Mute Hybrid Stepping Motor 0.1mm per step

Remark Function: Auto-outlet, Auto-inlet, Timing start

Driving Mode: 8 wheels

Dimension: 530X430x330mm

Net weight: 45KG

Blade material: Import tungsten steel/Highspeed steel

Fully automatic 2.5-50 sqmm 13awg-1/0awg wire stripping machine working vedio:
