Product Description:

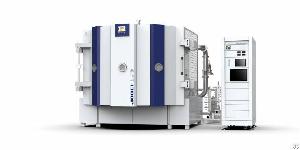

Fully automatic optical coating equipment
Product feature
◆The rotary mechanism adopts thecenterrotation
mode, which is driven by magnetic fluid sealing technology, in roder to ensure the stability and uniformity of the coating.
◆Configure an ion source to improve thewear resistance of the coating layer and increase its adhesion.
◆Optical monitoring system and resistance heating evaporation
source can beinstalled as required.
◆The workpiece holder can be selected as a bell jar or planetary type.
◆Wide rangeof coating materials.
◆Easyto operate and maintain.
◆High process stability.
Application field
◆Automotive touch screen, mobile phone diaphragm color, mobile phone cover glass, camera AR, telescope, optical lens, eyeglass lenses, high-end decorative parts.
Productapplication
◆Metalfilm.
◆Optical filter.
◆Reflective film.
◆Antireflection film.
◆Anti-fingerprint film(NCVM).
◆Configure ion source.
◆Anti-reflective film.
Equipment specification
Model: OPT-1300P
Workpiece holder mechanism : About 1200mm
Rotating speed: 0~50rpm(variable)
Crystal film thickness gauge: INFICON XTC/3+6 point crystal rotation sensor
Operating system: Siemens/Mitsubishi
Evaporation system: Electronic gun x2
lon source: Hall, Kaufman, RF
Baking method: Room temperature -350℃ quartz lamp or stainless tube heater
Ultimate vacuum: Below 7.0*10-5pa
Pump-down time: Atmospheric pressure ~3.0* 10-3Pa Below 15min
Power Requirement: Three-phase, 380v, 50/60Hz, approx 110KVA
Cooling water requirement: Above 140L/min
Air pressure requirement: 0.5-0.7MPA
