Fully Automatic Wire Stripping Twisting Machine

Posted at: Offers to Sell and Export | Posted on: Saturday 16 June 2018 10:48 am | Poster last visit: Sunday 20 January 2019 |

Product Category: Main » Tools and General Machinery » Hand tools » Holding and clamping tools » Wire stripping pliers » Fully Automatic Wire Stripping Twisting Machine

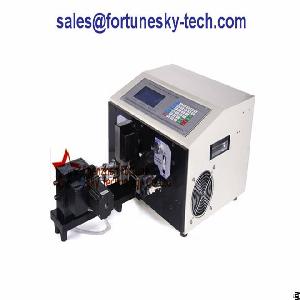

Product Photo:

wire stripping twisting machine

Similar Products Catalog:
Products Photos Catalog Wire Stripping Photos Catalog

Product Description:

Model No. SWT508-NX2

Remark Process super short thin wire, shortest length can be twisted is 28-30mm


Power

AC220/ 50HZ

Motor Rated 450W

Display English/Chinese

Cutting Length 1-100000 mm

Stripping Length (mm) Wire head:0-35

Wire tail:0-20

Cutting Tolerance ±(0.0001xL)mm

Middle Stripping 16 sections

Cut core cross-section Single wire processing: 0.1-4.5mm2

Double wire processing: 0.1-2.5mm2

Catheter Max. Diameter(mm) 6

Appropriate Wire PVC wire, Teflon wire, Glass wire

Blade Material Hard Tungsten Steel

Production

L=100mm

(piece/hour)

4000-10000

Drive Mode 4 Wheels

Wire Twist Mode Single-end twist or double-ends twist



Company Contact:

No member photo
Contact Name: Robin Chiu
Company Name: Shenzhen Fortune Sky Technology Co., Ltd
Email: Email
Tel: 0086-755-26420520
Fax: 0086-755-82312036
Street Address: 502# 77th Blog,
Kongfa Xin Cun, Caopu, Luohu
District, Shenzhen City, China.
Shenzhen, Guangdong 518002
China
Website: https://www.fortunesky-tech.com
Member name: FortuneSkyTech
Country: China-CN China
Member Since: 03 March 2013
Total Leads: 86 FortuneSkyTech Import Export Business Leads
Business focus: Wiring Harness Processing Machines, Terminal Crimping Machines, Automatic Wire Stripping Machines, Computerized Tube Tape Cutting Machines
