Product Description:

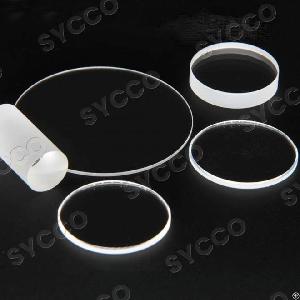

Fused silica window, with low thermal expansion, providing stability and resistance to thermal shock
over large temperature excursions, wide thermal operating range and high laser damage threshold, is a better choice for transmission from UV to IR.
Standard High Precision
Dimension Tolerance +0.0/-0.2 +0.0/-0.02
Thickness Tolerance ±0.2 ±0.005
Surface quality: 60-40 10-5
Clear Aperture >85% >95%
Flatness (per 25mm@633nm) λ /2 λ/10
Parallelism 3 min 3 sec
