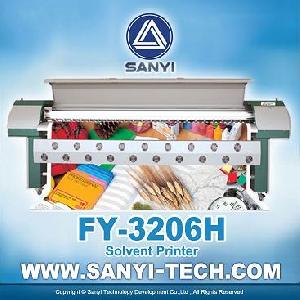

Fy 3206h Solvent Printer3.2m, Seiko Printhead
Posted at: Offers to Sell and Export | Posted on: Monday 10 May 2010 9:24 am | Poster last visit: Monday 1 October 2012 |
Product Description:
Product Model FY-3206H
Printhead SPT510-35PL
Number of Printhead 8 Heads
Maximum Print Width 3200mm
Output
(m2/h) Print mode Standard Output (m2/h)
360x360 1 pass 101
240x720 2 pass 76
240x1080 3 pass 51
360x1080 3 pass 34
720x720 4 pass 26
Ink Type : Solvent Ink / Mild Solvent Ink
Color : 4 Colors( C, M, Y, K )
Capacity : 1L or 5L per Main Tank of Each Color
Ink Supply System : Low Ink Detector, Auto or Manual Ink Supply System
Media Width : 3300mm
Type : Vinyl, Flex, Polyester, Back-lit Film, Window Film, etc
Auto Media Feeding System Equipped ( Max. Media Weight 80kg )
Auto Cleaning System Individual Positive Pressure Cleaning
Anti-clogged Flash Function & Capping System
Pre-heating & Drying System Equipped
Clamp Equipped
Print Interface Optical Fiber
Printhead Height 2 to 6 mm Above Media Adjustable
RIP Software Maintop, UltraPrint, PhotoPrint, Topaz, Wasatch, Caldera
Input Power AC 220V ，50Hz/60Hz
Machine Dimension L4600 x W820 x H1320 mm Net Weight : 482Kg
Package Dimension L4650 x W970 x H1600 mm Gross Weight : 770Kg
Operation Environment Temperature : 20℃—28℃ Humidity : 40%—60%
Company Contact:
Contact Name: Chris
Company Name: Shanghai Sanyi Technology Development Co., Ltd
Email:
Tel: 08602152063330 or 0086-21-52063365
Fax: 0086-21-52373330
Street Address: 16AB, No.895, West
Yan An Rd., Shanghai, China 200050
Member name: sanyichris
Country:
China
Member Since: 10 May 2010
Total Leads: 14 sanyichris Import Export Business Leads
Business focus: Solvent Printer, Large Format Printer, Wide Format Printer, Digital Printing Equipment
