Gear Inspection Machine
Posted at: Offers to Sell and Export | Posted on: Monday 30 August 2021 9:21 am | Poster last visit: Tuesday 29 October 2024 | Targeted Countries: Asia Pacific Region | Europe | Romania
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Measuring and observing and testing instruments
» Indicating and recording instruments
» Coordinate measuring machines CMM
» Gear Inspection Machine
Product Description:

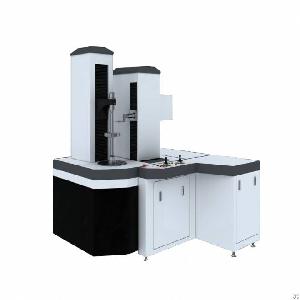

Gear inspection machine
Characteristics:
1. The machine adopts a closed frame and a vertical structure.
The steel frame with granite base, effective avoids vibration and so ensures the high precision of the instrument.
2. The 4D coordinate measuring system has three linear axes and a rotating axis.
3. The probe of the digital sensor has such advantage as high measuring precision, a large measuring range, small linear errors, convenient stem replacement, force automatic reversing and mis-operation safeguard function.
4. The imported Heidenha positioning grating is adopted for the machine datum position.
5. The advance electronic control system supported by the high precision gratings realizes the full closed-loop moving position control, also the gear inspection is automatically finished. The efficiency of the measurement is quite high.
Technology options:
Single dimensional scanning probe
Three dimensional scanning probe
Technical parameter:
Model GI30HD GI50HD GI60HD GI80HD
Modulus 1~15mm 1~15mm 1~15mm 1~15mm
Helix-angle 0°~90° 0°~90° 0°~90° 0°~90°
Max. permissible outer diameter Φ300 Φ500 Φ600 Φ800
Company Contact:
Contact Name: Dan Feng
Company Name: Hyde Science And Technology Limited
Email:
Tel: 86-29-89182431
Fax: 86-29-89182431
Street Address: Road Tangyan
Xi'an, Shaanxi 710065
China
Website: http://www.globalhaide.com/
Member name: hydesciencechamber
Country:
China
Member Since: 26 August 2021
Total Leads: 76 hydesciencechamber Import Export Business Leads
Business focus: Environmental Chamber, Drying Oven, Vibration Shaker, Utm, Testing Machine
Chat:
Verify: Safe Import Export Tips
