Gear / Rotary Damper Rd-t068 / V068

Posted at: Offers to Sell and Export | Posted on: Friday 26 April 2024 1:28 am | Poster last visit: Friday 26 April 2024 |

Product Category: Main » Power Generation and Distribution Machinery and Accessories » Power generation » Exhaust structures or screening equipment » Vane damper » Gear / Rotary Damper Rd-t068 / V068

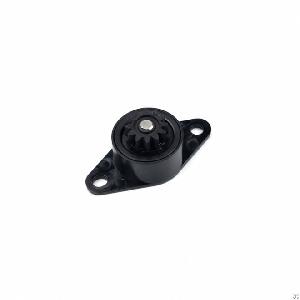

Product Photo:

gear rotary damper rd t068 v068

Similar Products Catalog:
Products Photos Catalog Gear Rotary Damper Photos Catalog

Product Description:

Gear/Rotary Damper RD-T068/V068

Characteristics


SOC Free, Screw, two-way, One-way, No angle limit

Component

Parts

Less honorary seat: PC

Upper cover: PC

Rotor: POM

Gear: POM

O-ring: vmq

Oil: silicone oil

Durability

Ambient temperature: normal temperature 23°

Conditions: One rotation (1 turn) / 1s - pause / 1s - Reverse rotation (1 turn) / 1s - pause / 1s

Lifetime: 30, 000 times

Technical Specifications

Type 12 / / /

Number of teeth 12 / / /

Tooth width

Product height 19

Module 1.05 / / /

Pitch circle diameter Φ14.7

Pressure angle 20° / / /

Material POM / / /
