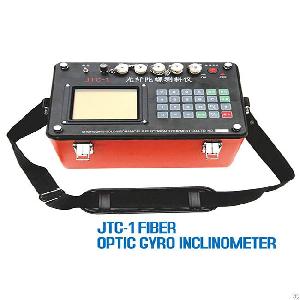

Geologic Instrument Gyro Inclinometer Jtc-1
Posted at: Offers to Sell and Export | Posted on: Monday 14 April 2014 3:19 am | Poster last visit: Monday 19 May 2014 |
Product Category: Main
» Medical Equipment and Accessories and Supplies
» Patient exam and monitoring products
» Medical exam size measuring devices
» Inclinometer
» Geologic Instrument Gyro Inclinometer Jtc-1
Product Description:
Specifications
Gyro inclinometer JTC-1is used to measure the angle of inclination in borehole
Features:
1.
It integrates advantages of dynamic tuning gyroscope, electric solid gyroscope, and mechanical frame gyroscope into together.
2. It is precise and stable.
3. It is with strong anti-impact performance.
4. It is not necessary to find north on the ground, so it is time saving and labor saving. It is convenient to be operated.
5. It is with long useful life.
6. It is with excellent software, so it is fine to be operated and it is suitable for different construction requirements. It can show test data table, and plot plane diagram, sectional diagram, side projection diagram, and space trace diagram.
Main Applications
Gyro inclinometer is mainly designed for drilling inclination and azimuth measurement of in iron casing in magnetic mine areas. General inclinometer drilling azimuth mainly relies on compass or magneto sensor for orientation; in the magnetic mine area or inside iron casing, due to the effect of magnetic substance, it is difficult to accurately determine the orientation of drilling. Therefore, the most effective way to measure azimuth in strong magnetic environment is to utilize gyro direction method without magnetic interference. Gyroscopes have two categories: mechanical type and electronic type. Mechanical gyroscope has greater zero drift, but short service life, high price. Gyro inclinometer adopts electronic gyroscope, it has advantages like small size, long service life, less zero drift, lower price, etc.
Gyro inclinometer consists of three parts namely ground instrument, winch (winch controller is required when>300m), downhole probe, with measured data automatic storage, compact instrument size, and simplicity of operation.
Company Contact:
Contact Name: Leo Cao
Company Name: Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
Email:
Tel: 86-23-62794421
Fax: 86-23-62790030
Street Address: 9f/10, Jintai
Building, Nanping, Chongqing,
400060, China
Chongqing, Chongqing 400060
China
Website: https://www.cqtestkit.com
Member name: ChongqingGold
Country:
China
Member Since: 27 March 2014
Total Leads: 40 ChongqingGold Import Export Business Leads
Business focus: Geophysical Exploration, Drilling Rig, Well Logging, Seismograph
