Product Description:
Usage:

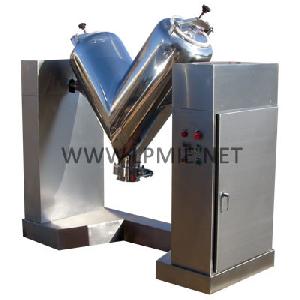

This mixer is suitable for the mixing of dry granule materials for pharmacy or other relative
industries.
Specialty:
Unique mixing cylinder, high mixing effects, no dead angle, even mixing.
Technical data:
Model
180 300
500 1000 1500 2000 2500 3000 4000
Total volume m3
0.18 0.3
0.5 1.0 1.5 2.0 2.5 3.0 4.0
Capacity 40 60
100 200 300 400 500 600 800
Model of auxiliary vacuum pump WL50 WL50 WL50 WL50 WL50 WL50 WL50
Charge-in time min
4-6 6-9 6-10 12-18 12-18 12-18 12-18
Mixing time min 4-8 6-10 6-10 6-10 6-10 6-10 6-10 6-10 6-10
Cylinder speed rpm 12 12 12 12 12 12 12 7.8 7.8
Power kw 1.1 1.1 2.2 4 4 7.5 7.5 7.5 11
Gross rotation height mm 1870 1870 2450 2940 2940 3670 3800 4000 4290
Weight kg
290 300
550 850 1020 2040 2200 2500 2800
