Product Description:

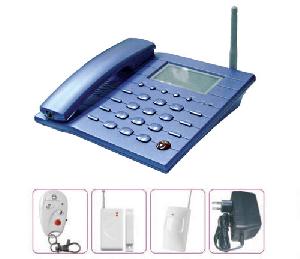

YL-007M5 GSM alarm system with telephone and SMS function
· Brief Introduction:
Can store and dial
5 phone numbers (no longer than 16 character each one). If an alarm occurs, numbers will be dialed in order starting with last stored.. You can set to dial monitoring center, police and owners, it can also send the SMS before calling.
Using remote controllers you can arm, disarm, panic from long distance.
You can control the system by using a telephone anytime, wherever you are. For security reasons a PIN code must be used for access.
Supports all kinds of wireless sensors, such as PIR detectors, door (gap) sensors, gas sensors, smoke sensors; panic buttons and infrared balusters are available.
Supports any combination of wired/wireless sensors, as you need.
No need for fixed telephone line. Is very suitable for cottage, house, shop, garage, everywhere a GSM Network is present.
For weak GSM signal area an external antenna can be used.
Three open collector outputs available to be used according to customer demands.
One onboard relay available for customer application.
With the telephone function, to show phone number, choose rings, re-dial. phone number and so on.
Easy to be installed and operated according to the instructions from this manual.
Can work with all kinds of wireless detectors or sensors, such as wireless PIR Sensors, beams, gas/smoke detectors, wireless panic buttons
Technical Parameters :
Operating Voltage: DC 12V
Static Current: ≤150Ma
Alarm Current: ≤600mA
Support GSM900/1800/1900 MHz, three working modes switched automatically
Support PHASE 2/2+ agreement (including data business)
Sending power:(2W)/EGSM900,(1W)/GSM1800 GSM1800
Wireless Receiving Frequency: 315MHz±0.5MHz
Wireless Receiving Sensitivity: 315MHz±0.5MHz
Anti-interference: 1V/m(frequency:20-1000 MHz)
Outer Alarm siren volume: 110dB
Working condition: Temperature: -10℃~40℃
Humidity: ≤90%
Capacity for wireless device: 16pcs
Standard pack components :
1 main panel, 1 wireless PIR sensor, 1 wireless door sensor, 1 siren, 2 remote controllers, 1 power supply and manual
Weight: 1.5Kg/set
