Product Description:

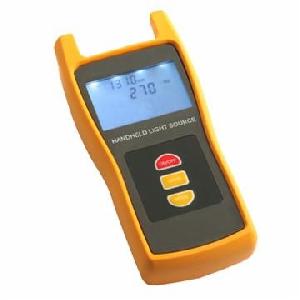

Handheld Optical Laser Source KL-360
Feature
Backlight LCD display
High stable output power
CW,
270Hz, 1KHZ, 2KHZ modulation output
Specifications
Type KL-360
Wavelength 1310/1550 nm
Emitter Type FP-LD
Output Power -7 dBm
Spectral Width ≤10 nm
Output Stability ±0.05dB/15min; ±0.1dB/8hours
Modulation Frequencies CW, 270Hz, 1KHz, 2KHz
Optical Connector FC/PC
Power Supply Alkaline Battery(3 AA 1.5V)
Battery Operating Time 45 h
Operating Temperature -10~+60 ℃
Storage Temperature -25~+70 ℃
Dimension 152mm(W)×74 mm(D)×26 mm(H)
Weight 180 g
