Product Description:

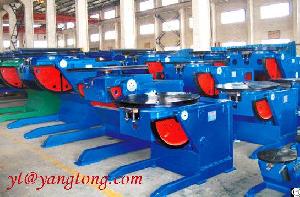

Welding positioner is divided into tilting type, lift type, head and tail stock rotary type, turn table
type, double rotary type, etc. Place the work-piece to the best welding or assembling position through lift, rotation and tilt of worktable. It also can be integrated controlled with welding manipulator or robot and form a automatic welding center. We can customized design and manufacture according to different types of work-piece of customer.
Main Technical Parameters for HB series:
Model HB3 HB6 HB12 HB20 HB30 HB50 HB80 HB100 HB150 HB200 HB300 HB500
Rated loading (kg) 300 600 1200 2000 3000 5000 8000 10000 15000 20000 30000 50000
Rotating speed (rpm) 0.2-2 .01-1.1 0.1-1.1 0.09-0.9 0.08-0.8 0.07-0.7 0.06-0.6 0.06-0.6 0.05-0.5 0.05-0.5 0.04-0.4 0.04-0.4
Tilt speed (rpm) ≈0.9 ≈0.8 ≈0.5 ≈0.4 ≈0.3 ≈0.15 ≈0.15 ≈0.14 ≈0.14 ≈0.14 ≈0.1 ≈0.1
worktable dia (mm) ¢600 ¢800 ¢1000 ¢1200 ¢1400 ¢1600 ¢2000 ¢2000 ¢2200 ¢2500 ¢3000 ¢4000
Max eccentricity (mm) 150 150 200 250 250 250 200 200 200 200 200 200
Max gravity center distance (mm) 200 250 250 300 400 400 400 630 630 630 630 800
Worktable tilting angle 0-120°
Rotating motor power (kg) 0.37 0.37 0.75 1.1 1.5 2.2 2.2 3 4 5.5 7.5 11
Tilting motor power (kg) 0.37 0.55 1.1 1.5 2.2 3 4 4 5.5 7.5 11 18.5
Rotating dia. at 90°(mm) ≤1000 ≤1500 ≤1570 ≤1900 ≤2300 ≤2600 ≤3000 ≤3100 ≤3400 ≤3400 ≤4200 ≤5700
