Hbt80 Stationary Concrete Pump

Posted at: Offers to Sell and Export | Posted on: Friday 6 May 2011 1:36 am | Poster last visit: Friday 9 November 2012 |

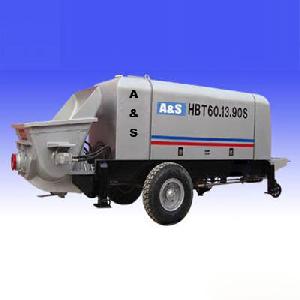

Product Photo:

hbt80 stationary concrete pump

Similar Products Catalog:
Products Photos Catalog Hbt80 Stationary Photos Catalog

Product Description:

HBT 80C-16-154S(Diesel Engine) Technical paramater

Concrete theoretical delivery pressure


(Mpa) High pressure 16

Low pressure 8.8

Concrete conveying theoretical diacharge capacity (m 3 /h) High pressure small volume 45

Low pressure large volume 80

Main drive(kw) Rated power 154

Main oil pump Ratedoperating pressure(MPa) 32

Rated working flow(L/min) 420

Theoretical maximum conveying distance (mm) Pipe diamter φ 125mm Horizental 1000 Vertical 280

φ 125mm horizental 1000 Vertical 260

Maximum aggregate size(mm) Pipe diameter φ 150mm 50

φ 125mm 40

Conveying cylinder diameter× maximum stroke(mm) φ 200× 1800

Bucket capacity× loading height (m 3 × mm) 0.6× 1320

Hydraulic tank volume(L) 560/180Diesel tank volume

Hydraulic oil model 46 Anti-wear hydraulic oil

Overall dimensions length× width× height(mm) 6685× 2085× 2072

Maximum towing speed(km/h) Grade2 less than 15km Grade3 less than 8km

Total mass(kg) 7100
