Product Description:

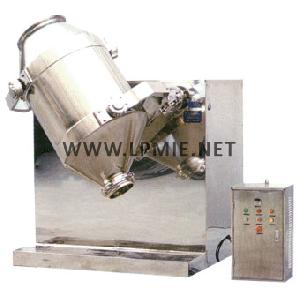

HD series multi-directional motions mixer is a new-type high-efficiency mixing equipment meticulously
designed and manufactured through absorption in medicine (traditional Chinese and western raw material medicine and preparation ), chemical engineering(chemical raw materials, dye, paint), light industry (food, plastics), and agriculture(seed treatment, feed additive) where different materials need to be mixed.
Technical data:
Model HD-5 HD-20 HD-50 HD-100 HD-200 HD-400 HD-600 HD-800 HD-1000 HD-1500
Volume of mixing barrel (L) 5 20 50 100 200 400 600 800 1000 1500
Max.charge volume (L) 4 17 40 85 170 340 500 680 850 1275
Max.charge weight (kg) 4 15 40 80 100 200 300 400 500 750
Main shaft speed (rpm) ≥20 ≥20 ≥17 ≥14 ≥14 ≥12 ≥12 ≥10 ≥10 ≥10
Motor power (Kw) 0.75 0.75 1.1 2.2 3 4 5.5 7.5 7.5 11
Weight of whole nachine (kg) 90 100 200 500 700 1200 1500 2500 3000 5000
