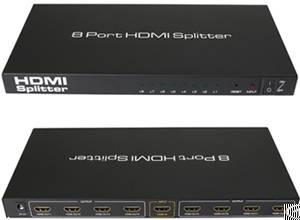

Product Description:
Product Description
Connect one cable from HDMI source devices into HDMI Splitter input.
Connect one
cable from each display(monitor or projector) into the HDMI splitter outputs.
Connect 5V power supply to the HDMI 1X8 Splitter.
Product Feature
One HDMI input signal split to four HDMI sink devices
Support 3D
Support CEC
Support deep color 30bit, 36bit
Support Blue-Ray 24, 50, 60fs, HD-DVD, xvYCC
Digital audio format, as DTS-HD, Dolby-trueHD, LPCM7.1, DTS, Dolby-AC3, DSD
Support signal retiming
Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/2A power supply
Product Specification/Models
HDMI resolution:24, 50, 60fs, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Support video color format:24bit, 30bit, 36bit deep color
Support audio format:DTS-HD, Dolby-trueHD, LPCM7.1, DTS, Dolby-AC3, DSD
Max bandwidth:225MHz
Max baud rate:6.75Gbps
Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)
Input/Output DDC signal:5Volts p-p (TTL)
Input cable distance:less than 15m HDMI AWG26
Output cable distance:less than 25m AWG26 HDMI standard cable
Max working current:1.4A
Power adapter format..Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/2A
Operating Temperature range:(-15 to +55 degree Celsius)
Operating Humidity range:5 to 90%RH (No Condensation)
Dimension (L x W x H): 280*158*25(mm)
Weight:1030g
