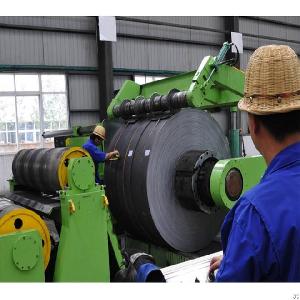

Heavy Gage Slitting Line
Posted at: Offers to Sell and Export | Posted on: Thursday 17 October 2019 2:45 am | Poster last visit: Thursday 17 October 2019 |
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Metal cutting machinery and accessories
» Metal cutting tools
» Metal slitting saw
» Heavy Gage Slitting Line
Product Description:
12X2000mm Heavy Gage Slitting line
12 Mm Heavy Gage Slitting Line China Exporter, Metal Material Slitter
Rewinder, Automatic Slitting Line For Steel
Model NO.:WXLJ-12X2000mm Heavy Gage Slitting line
The serial lines are used for different sizes coils with different thickness to be slit into special strips as requirements .These products are for roll mill, HF tube mill, cold forming machines, punching &press machines etc. Raw material is CR material, HR material, silicon steel, S.S steel, Color steel, AL, PPGI ….;
Composed of coil car-un-coiler – guiding &pinch device –slitter, side-guiding device –looping –tensioner –scrap –re-coiler –recoil car etc .
Technical Parameter
Coil Material CR Coils, HR Coils, S.S Steel Coils, GI Coils, AL Coils, Copper Coils Picking Oil Coils
Coil Thickness 0.2～1.8mm 0.3～3.0mm 0.8～4.0mm 1.0～6.0mm
Line Speed 0～150/200m/min 0～150/200m/min 0-120/150m/min 0～80m/min
Coil Weight ≤10T(15T) ≤20T(25T) ≤25T(30T) ≤25T(30T)
Coil I.D φ508mm φ508mm φ508, φ610, φ760mm Φ508, φ610, φ760mm
Coil O.D ≤φ1600mm ≤φ2000mm ≤φ2000mm ≤φ2000mm
Strip Width ≥15mm ≥25mm ≥25mm ≥30mm
Number of Strip 5～15 8～20 5～15 4～15
Slitting Accuracy
Blade shaft ±0.1mm
Ф220 ±0.15mm
Ф240mm ±0.25mm
Ф240mm ±0.3mm
Ф260mm
Company Contact:
Contact Name: Windy Jiang
Company Name: Wuxi Longar Machinery Manufactory Co.ltd
Email:
Tel: 13812190395
Fax:
Street Address: No.399 Jincheng East
Road , Xintai Industry Park , Xinwu
Dis
Wuxi, Jinagsu 217000
China
Website: http://www.wxlongar.com/
Member name: wxlongar
Country:
China
Member Since: 17 October 2019
Total Leads: 10 wxlongar Import Export Business Leads
Business focus: Slitter Machine, Slitter Line, Slitting Machine, CTL Machine, Rotary Shear Machine, Combined Slitting CTL Line, Cold Rolling Mill
Chat:
