Product Description:

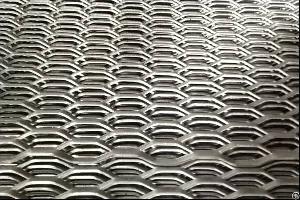

Hexagonal Opening Expanded Mesh, Hexagonal Expanded Metal Screen
Expanded Mesh, Hexagonal Opening:
Thickness
: 0.5mm to 8mm
Width : up to 2.5M
Material of Expanded Metal Mesh: Carbon steel, aluminum metal, stainless steel metal, nickel metal and so on.
Uses of heavy type hexagonal opening expanded mesh: Fencing for road, railway, civil building, water conservancy's construction; protecting of all kinds of machines, electrical equipment, window and aquatic product's breeding
standard hexagonal expanded metal mesh.
Long diagonal = 6.0mm
Short diagonal = 3.5mm
Pass =1.0mm
Thickness = 0.6mm
standard square hole
Long diagonal = 4.0mm/6.0mm
Short diagonal = 2.9mm/4.5mm
Pass= 0.6mm/0.6mm
Thickness = 0.6mm/0.6mm
Galvanized expanded metal lath rolls, hexagonal opening shape 12x35mm, weight: 1.5 kg /m², width: 1m, length 15m
GI welded wire mesh, opening 25x25mm, wire dia. 1.2mm, size: 1.2x30 meters.
Fine expanded titanium mesh:
a. 0.6 mm thick in hexagonal design with mesh size 1 x 2 mm and 1.5 x 2 mm
b. Same as (a) but in diamond shape if you have it
Fine expanded stainless steel
a. Same as 1a
b. Same as 1b
1 metre wide x 10 m length.
Features: it is strong and wear-resisting
No item/name length (mm) hight (mm)
1 hexagonal hot dip steel expanded mesh galvanize (astm a36 3mm thk) 1130 2215
2 1100 2215
3 1245 2215
4 950 2215
5 1195 2215
6 1305 2215
7 920 2670
MS EXPANDED MESH-mild steel according to ASTM A 36 – standard specification for carbon steel structural steel
Expanded Mesh .032 carbon steel, 6.5" SWD x 48" LWD ¼" hexagonal bonded edges.
Specifications:
032 flattened
Carbon steel
.235 lwo
.18 swo
Bonded edges
6.5” wide
48” long
Raised Expanded Metal
The strand measurements for the first picture shown are approximately: 11mm x 5mm with a thickness of 2 mm, or .386in x .172in with a thickness of .046in.
The second picture shown has measurements of approximately: 15mm x 5mm with a thickness of 3mm, or .615in x .183in with a thickness of .045in.
The first photo is a regular standard diamond shape and the second is hexagonal and both are RAISED.
