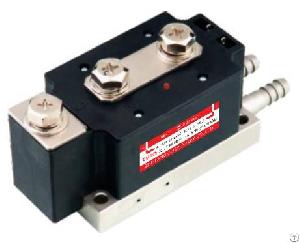

Hhg1s Single-phase Indusreial Ssr
Posted at: Offers to Sell and Export | Posted on: Friday 23 May 2014 6:42 am | Poster last visit: Wednesday 17 December 2014 |
Product Category: Main
» Electrical Systems and Lighting and Components and Accessories and Supplies
» Electrical equipment and components and supplies
» Electrical relays and accessories
» Solid state relay
» Hhg1s Single-phase Indusreial Ssr
Product Description:
Part NO.
HHG1S-1/032F-120 500-800A(SSR-DA) Water-cooled
Dc---ac
Description
Single-phase
Industrial SSR
Control Voltage
014:3-14vdc 032:3-32vdc
Control Current
5-25mA
Turn-on Voltage
3vdc
Turn-off Voltage
1vdc
Reverse Voltage
32vdc
Load Voltage
120:60-1200vac
Load Current
500a, 600a, 800a
Transient Voltage
120:1600vac
On-state Voltage Drop
＜1.6vac
ON-OFF Time
≤10mS
Off-state Leakage Current
≤10mA
Dielectrics Voltage-resistance
≥2500vac
Insulation Resistance
500MΩ 500VDC testing
Ambient temperature
-30～80℃
Dimensions
160l*63w*72h
Indicated Methods
Led
Installation
Screw fixing
Packing
Inner Box (PCS)
1
Outer CTN (PCS)
60
CTN Size
380*215*175mm
Weight
Approximate 1800g/pcs
Radiator
Water-cooled
Remarks
1.Load current＞10A, a radiator is necessary, Load current＞80A, fan is necessary.
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
Company Contact:
Contact Name: Mary
Company Name: Clion Electric Co., Ltd
Email:
Tel: 86-0577-57151993
Fax: 86-0577-57572255
Street Address: No.319, Wei 18 Rd.,
Yueqing Economic Development Zone
Wenzhou, Zhejiang 325600
China
Website: https://www.clion-relay.com
Member name: ClionRelay
Country:
China
Member Since: 20 May 2014
Total Leads: 49 ClionRelay Import Export Business Leads
Business focus: Solid State Relay, Electromagnetic Relay, Time Relay, Meter, Relay Socket
