High Acceleration Shock Test System
Posted at: Offers to Sell and Export | Posted on: Friday 27 August 2021 9:13 am | Poster last visit: Tuesday 26 November 2024 | Targeted Countries: Belarus | Russia | Ukraine
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Measuring and observing and testing instruments
» Metals and metallurgy and structural materials testing instruments
» Shock testing apparatus
» High Acceleration Shock Test System
Product Description:

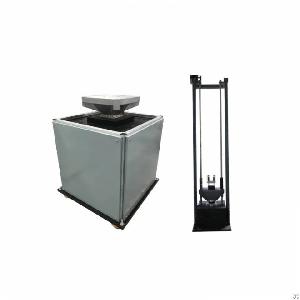

high acceleration shock test system
KCT13 series high acceleration shock test system is specially developed
to meet the requirements of military industry, home appliances and other industries. The system adopts the principle of air pressure storage expansion, by adjusting the air inflation pressure, it is convenient to implement various high energy acceleration tests in a short stroke.
For classical free drop shock tester, to achieve high acceleration, it is equipped with a shock amplifier which is for general free drop shock tester.
Model KCT13-50 KCT13-100
Rated load (kg) 50 100
Table size (mm) 350*300 mm 500*500 mm
Shock waveform Half sine Post peak sawtooth Half sine Post peak sawtooth Trapezoid
Shock peak acceleration (m/s2) 100~
8500 100~2000 100~
7000 100~2000 150~1000
Shock pulse duration (ms) 40~0.8 18~3 40~1 18~3 12~6
Bump waveform Half sine wave
Bump peak acceleration (m/s2) 50~1500 50~1000
Bump pulse duration (ms) 30~3 30~3
Overall dimensions (mm) 900*800*2000 1300*1000*2100
Weight (kg) 1000 1800
Max. frequency times (times/min) 100 80
Power supply requirements for Table AC 220V±10%, 50Hz, 2kVA
Power supply requirements for Air compressor AC 220V±10%, 50Hz, 3kVA or
AC 380V±10%, three-phase, 50Hz, 5kVA
Air source conditions Air source output pressure is not more than 1.0Mpa.
If there is no air source in the lab, air compressor needs to be configured;
If there is air source in the lab, and there is a high requirement on the bump frequency times, it needs to configure a corresponding air storage tank.
Environment temperature 0~40℃
Humidity (%) ≤90% (25℃), non condense
